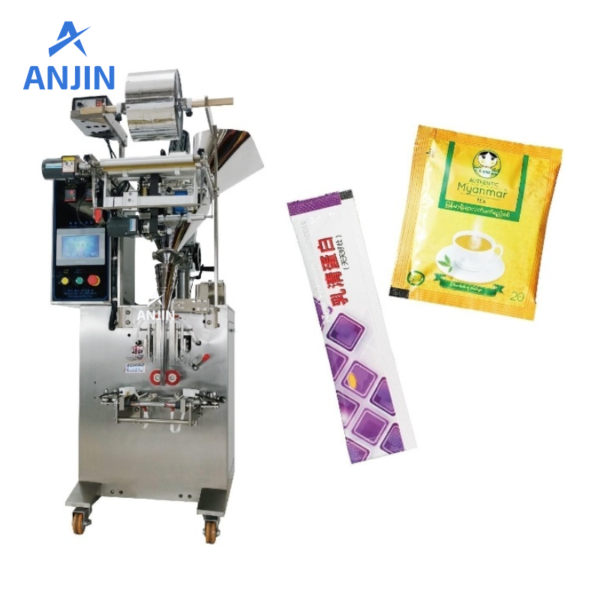

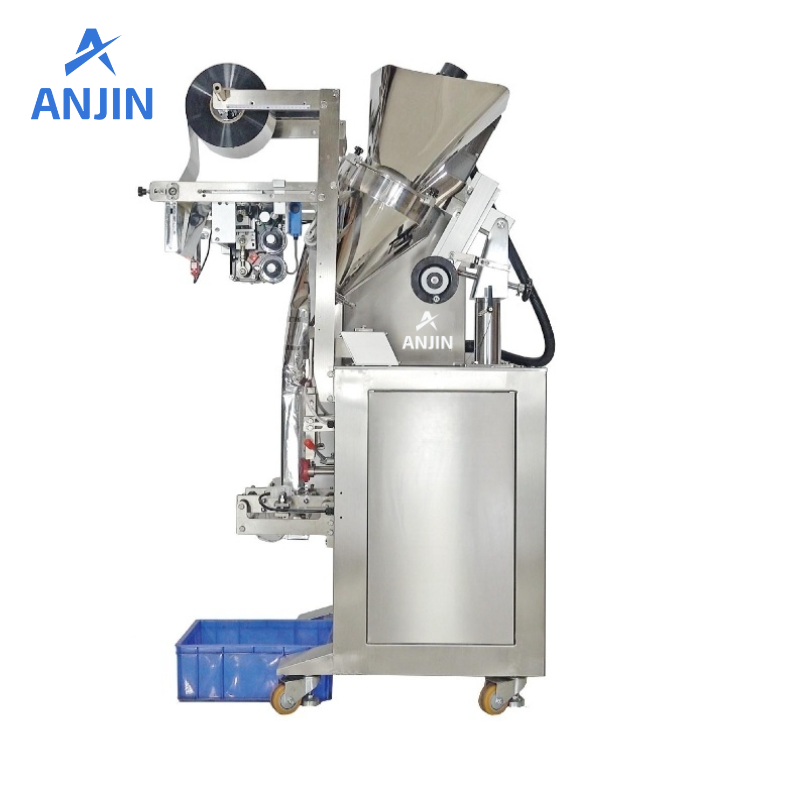

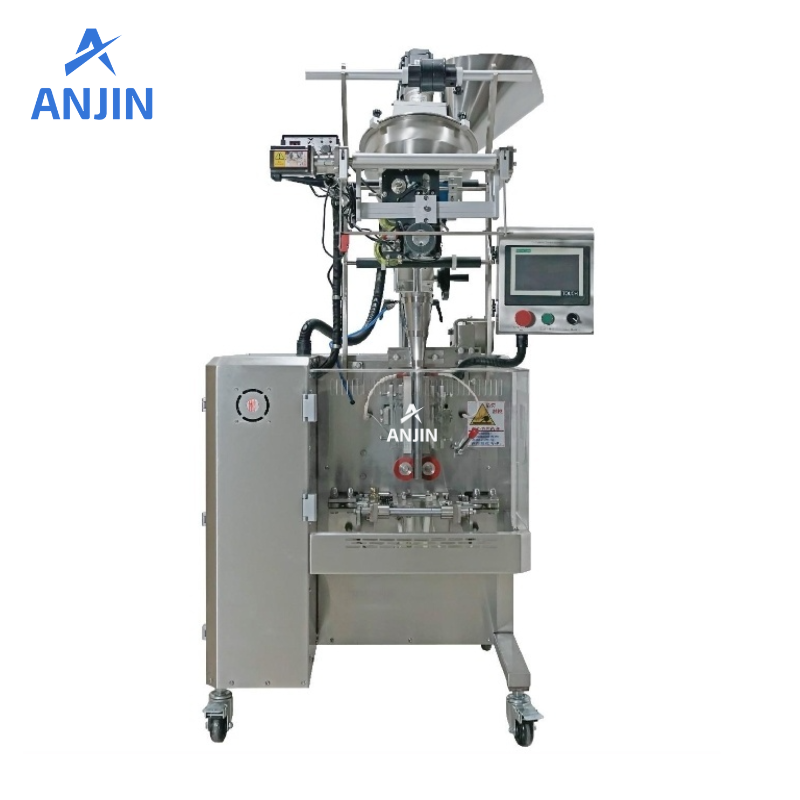

Automatic Powder packing machine for milk, coffee powder, and chilli powder
Application:
This powder packing machine is suitable for the food, medicine, chemical, and cosmetics industries of particles of measurement packing.
Features:
1. The machine is suitable for the food, medicine, chemical industries, and cosmetics industries of particles of measurement packing.
2. All the work of bag forming, measuring, filling, sealing, cutting, date printing, and counting work is done automatically. At the same time, according to customers’ demand, can also customize the batch number and other functions.
3. The touch screen operation, PLC control, drive stepper motor to control the bag length, stable performance, easy to adjust, and accurate detection. Choose the intelligent temperature controller and PID control to ensure the error range of temperature is controlled within 1 degree Centigrade.
4. Packing material: BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene
Parameter Data:
| Model | AJ-61XCF | AJ-61XAF | AJ-61XBF |
| Packing material | Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on. | ||

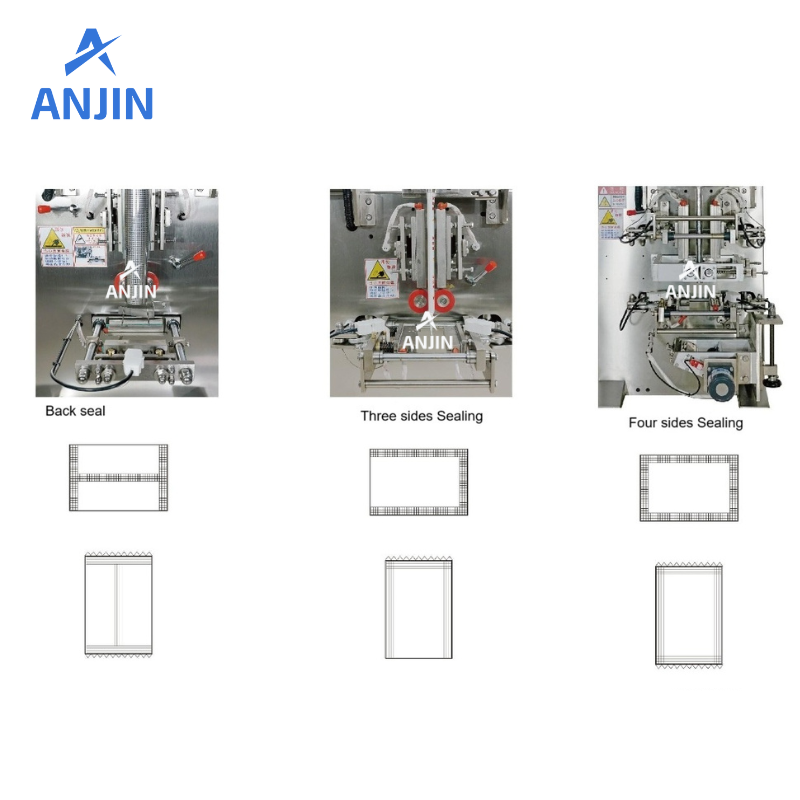

| Sealing Type | Three sides Sealing/ Four sides Sealing/ Back sealing | ||
| Measuring Scope | 1-100 g（3-100 ml） | 1 – 100 g | 1 – 100 g |
| Bag length | 30 – 170 mm | 30 – 170 mm | 30 – 170 mm |
| Bag width | 30 – 130 mm | 30 – 130 mm | 30 – 130 mm |
| Packing Speed | 30 – 70 bags/min | 30 – 70 bags/min | 30 – 70 bags/min |
| Dimension ( L * W * H ) | 759 * 1100 * 1550 mm | 990 * 730* 1620 mm | 810 * 630 * 1550 mm |
| Weight | 235 kg | 230 kg | 300kg |
| Total Power | 220V / 50Hz / 1.4kw | 220V / 50-60Hz / 2.5kw | 220V / 50Hz / 1.4kw |
Video for reference:
