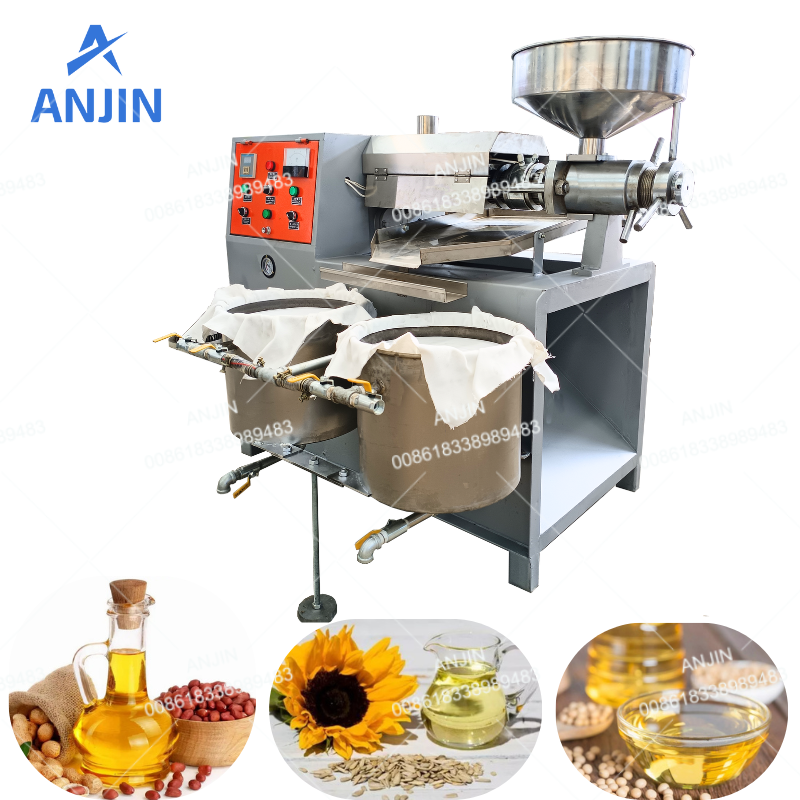

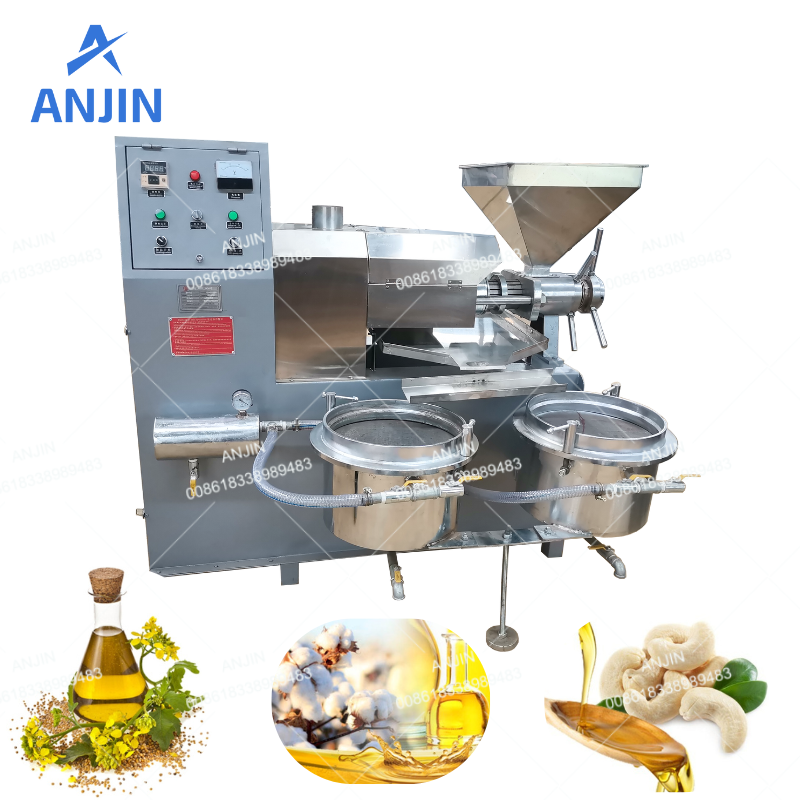

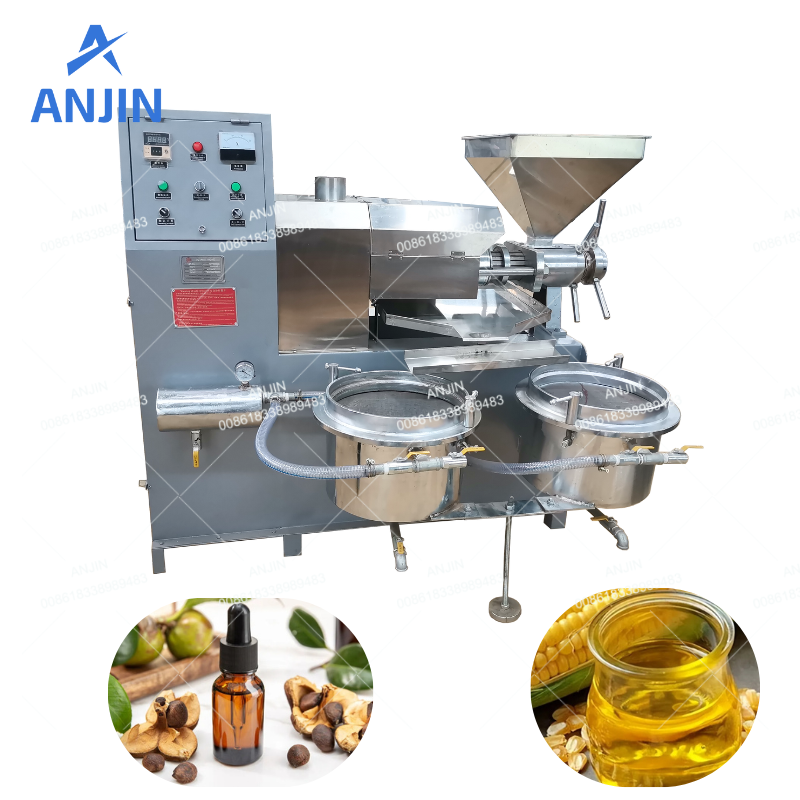

The Peanut oil Extraction machine screw oil press is also called a fully automatic multifunctional oil press. It uses a screw feed method and can work continuously. Suits for cold press or hot press. This machine has a heating system, automatic temperature control, and vacuum oil filtration
Finished oil can processing:
Peanut oil, rapeseed oil, soybeans oil, cotton seeds oil, sunflower seeds oil, cashew nut oil, Camellia seed oil , corn germs oil, and other oil crops for processing.
Feature :

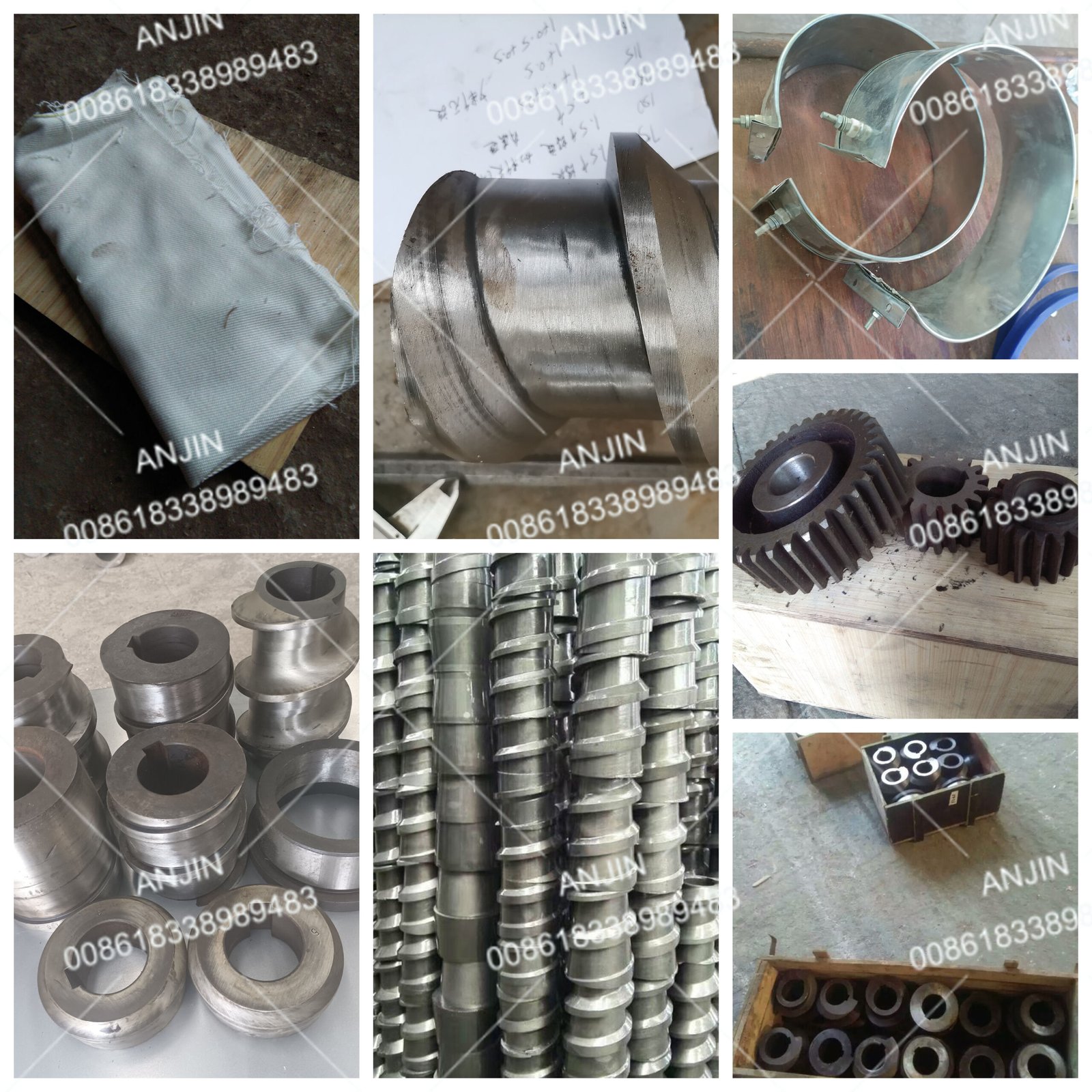

- Simple operation, high oil yield, and less replacement of vulnerable parts in the mechanical oil press.
- The structure is stable and has a long operating life.
- Simple to operate and convenient for daily maintenance.
- With different capacities for optional.
Parameter data:
| Model | AJ-LX80T | AJ-LX100T | AJ-LX120T | AJ-LX125Y | AJ-LX130Y | AJ-LX165Y |
| Diameter of pressing chamber | 80MM | 100MM | 120MM | 125MM | 130MM | 160MM |
| Host speed | 75r/min | 54r/min | 54r/min | 40r/min | 40r/min | 32r/min |
| Host motor power | 5.5kw | 7.5kw | 11kw | 15KW | 18.5kw | 30kw |
| Vacuum Pump | 4L-0.75KW | 10L-1.1KW | 10L-1.1KW | 10L-1.1KW | 10L-1.1KW | 15L-1.5kw |
| Heater | 2.2KW | 2.8KW | 3kw | 3kw | 3kw | 3kw |
| Capacity | 80-140kg/h | 160-280kg/h | 250-300kg/h | 400kg/h | 500kg/h | 700-800kg/h |
| Voltage | 380v50hz3p | 380v50hz3p | 380v50hz3p | 380v50hz3p | 380v50hz3p | 380v50hz3p |
| Dimension (mm) | 1650*1230*1450 | 2000*1330*1600 | 2040*1380*1600 | 2040*1380*1600 | 2040*1380*1600 | 2620*1350*1900 |
| Weight (kg) | 495kg | 750kg | 895kg | 1100kg | 1250kg | 1800kg |

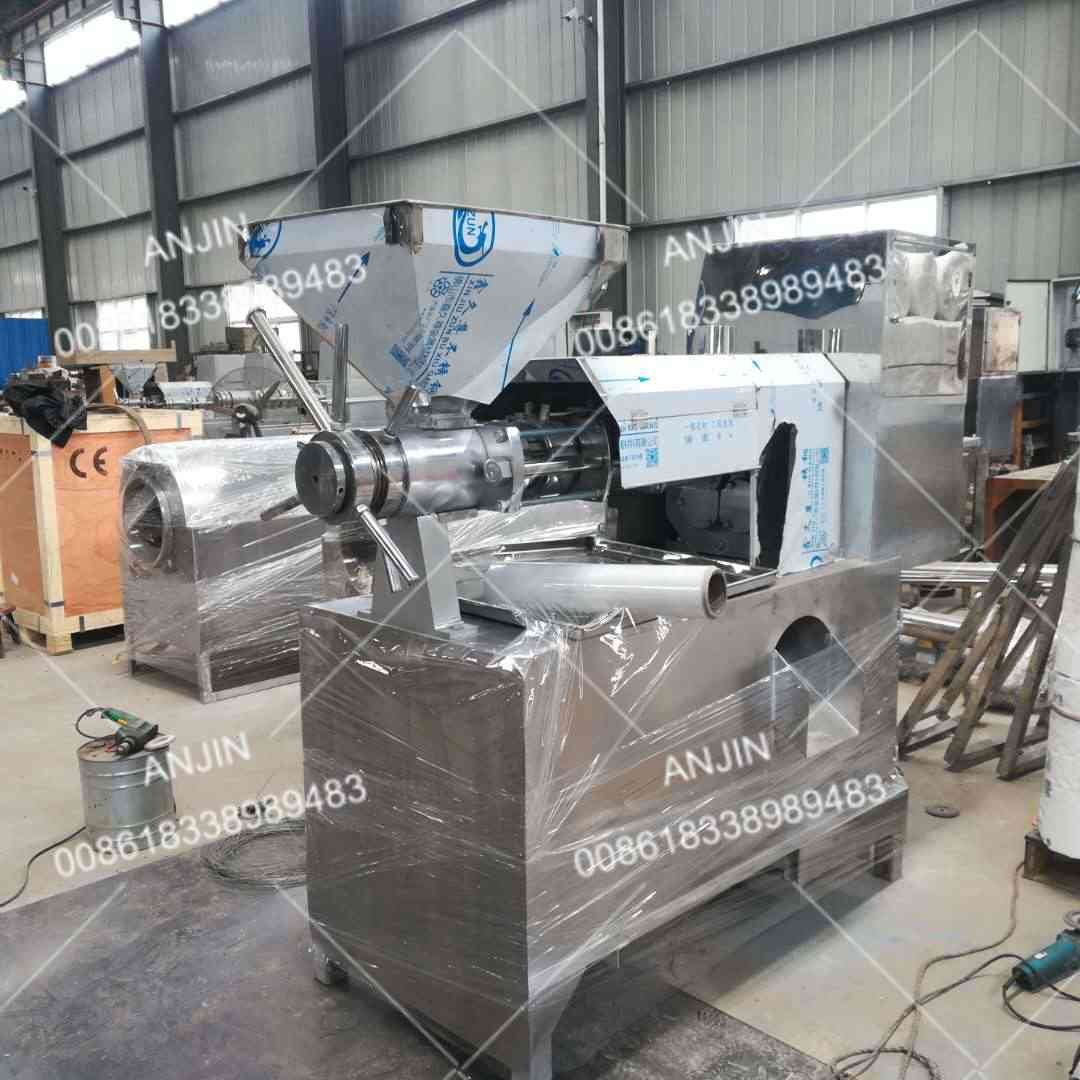

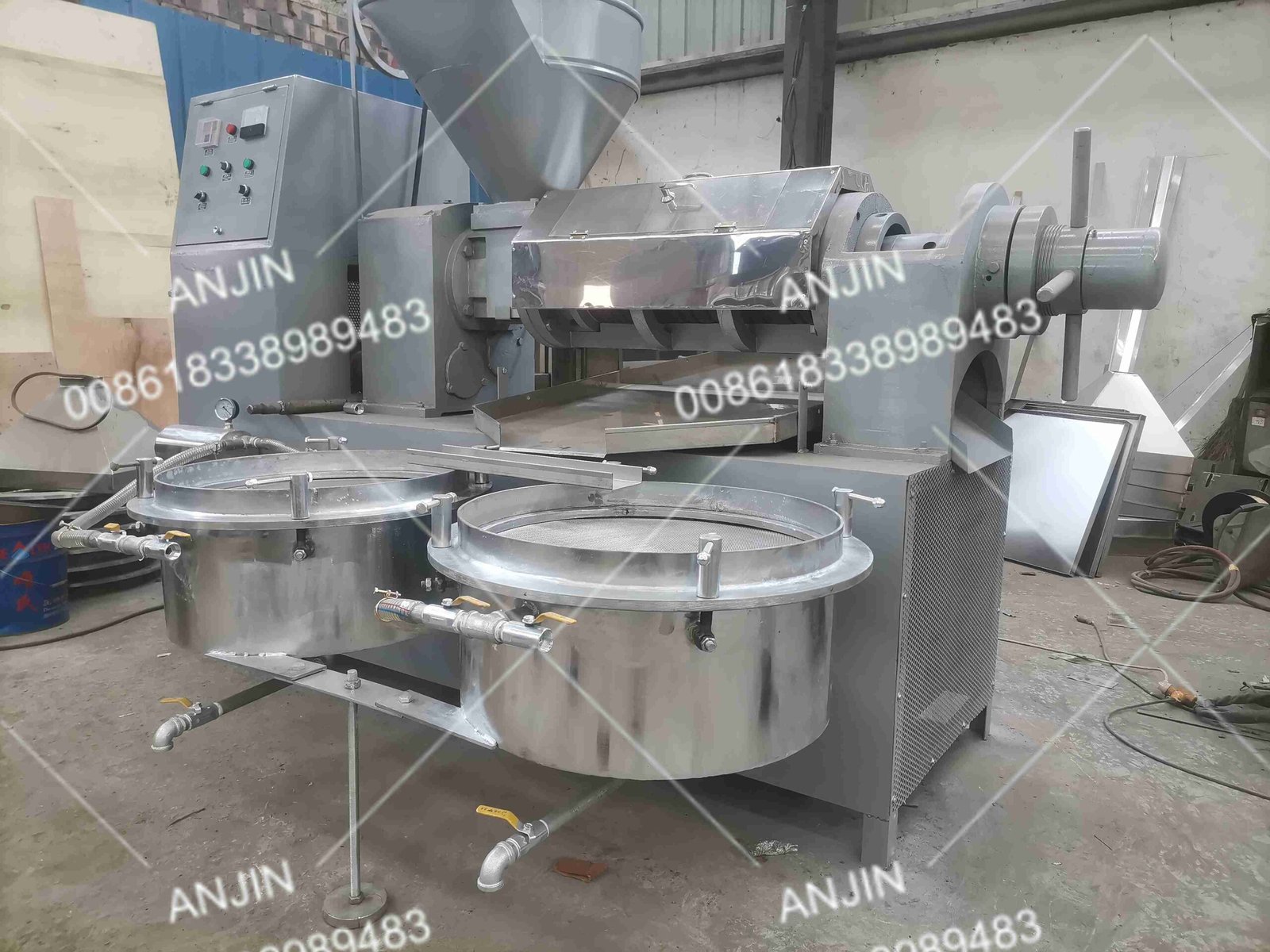

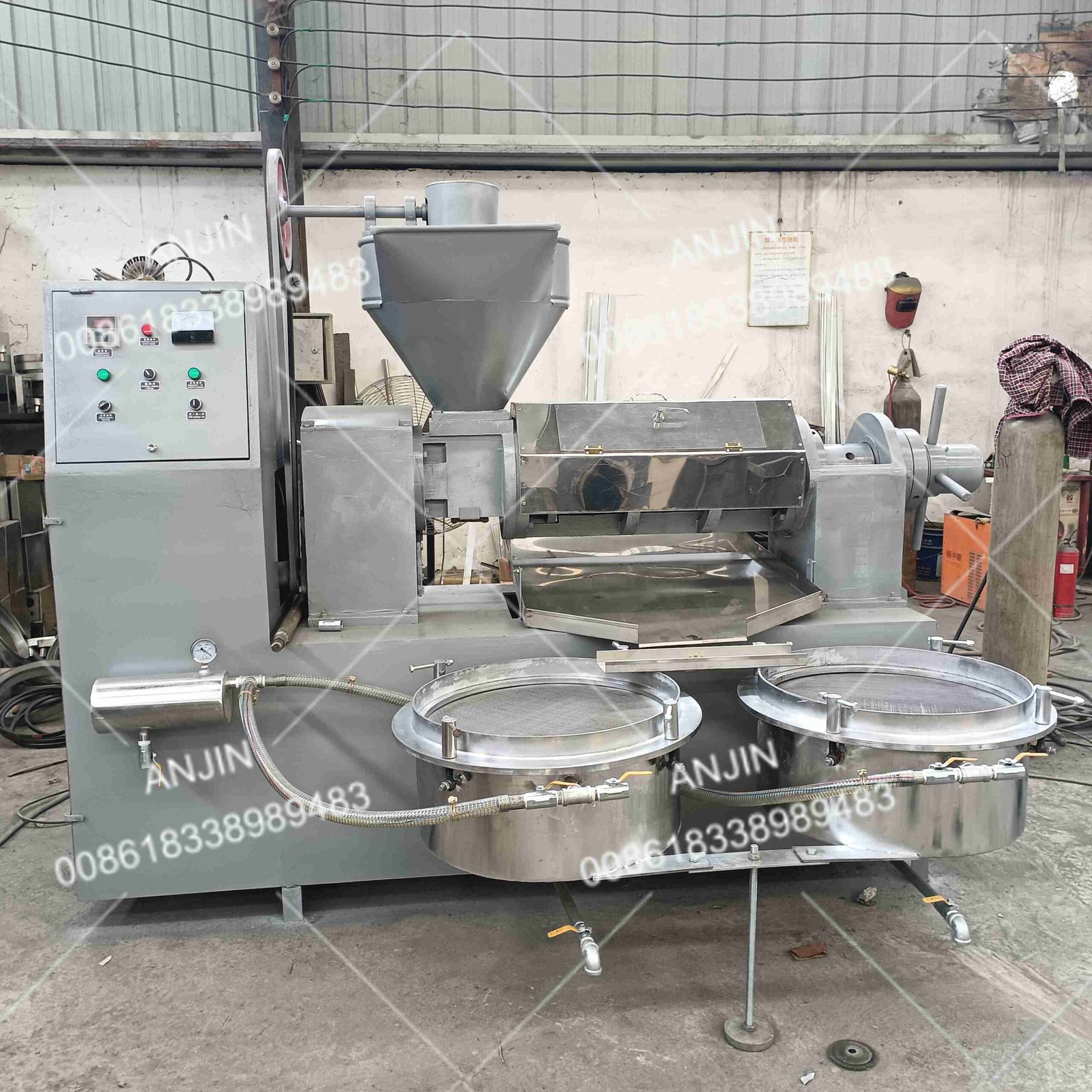

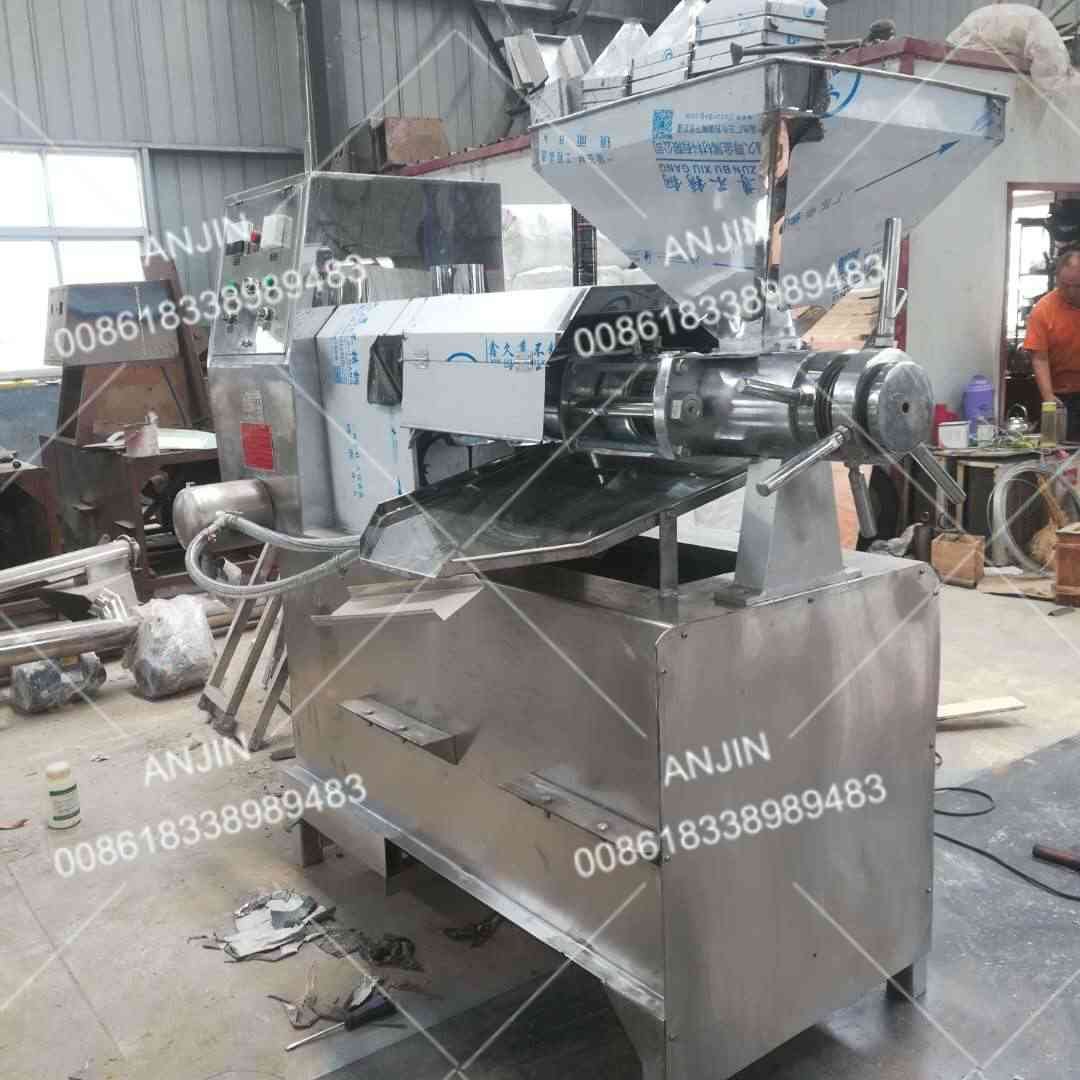

More pictures of Peanut Oil Extraction Machine:
Related Hydraulic Oil pressing machine:
The hydraulic oil press machine adopts sesame, walnut, coconut, macadamia nut, grape seed, avocado and other oil crops.
Video for reference:
