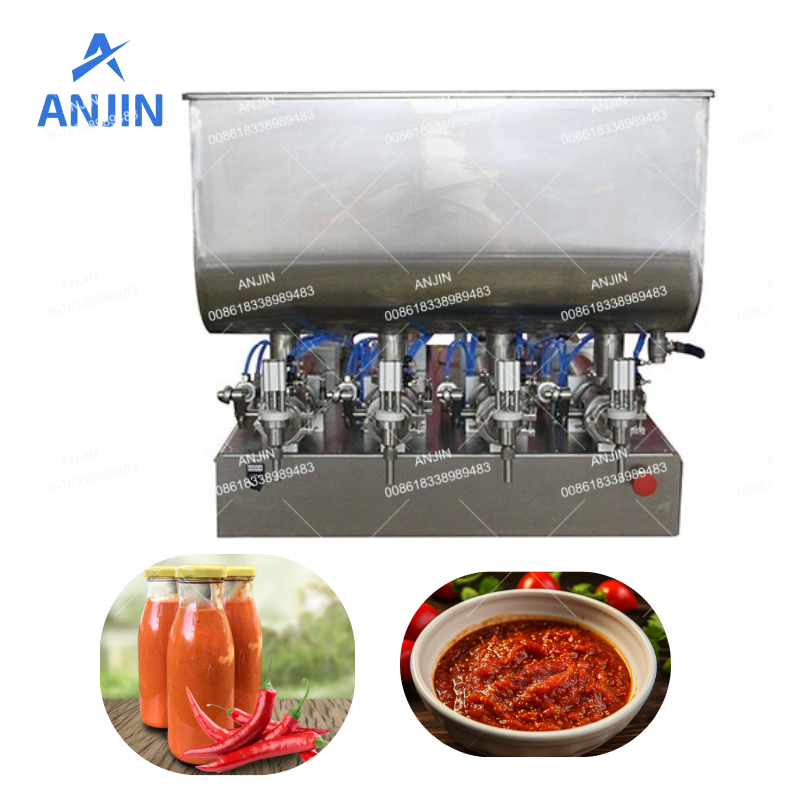

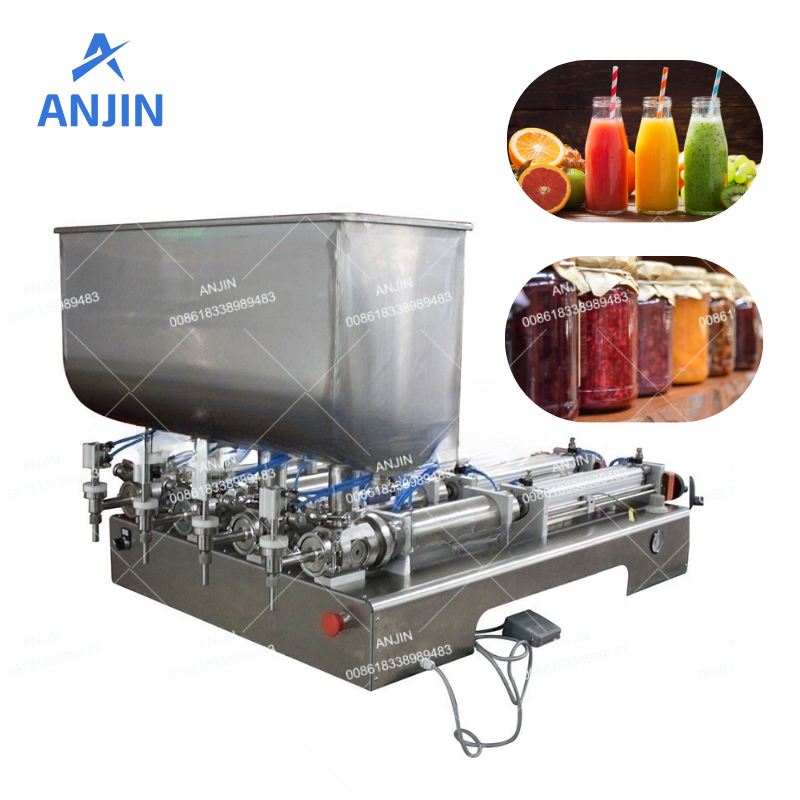

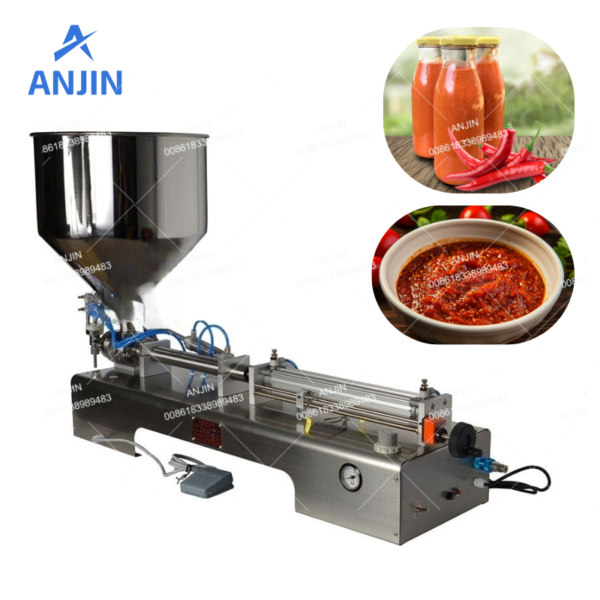

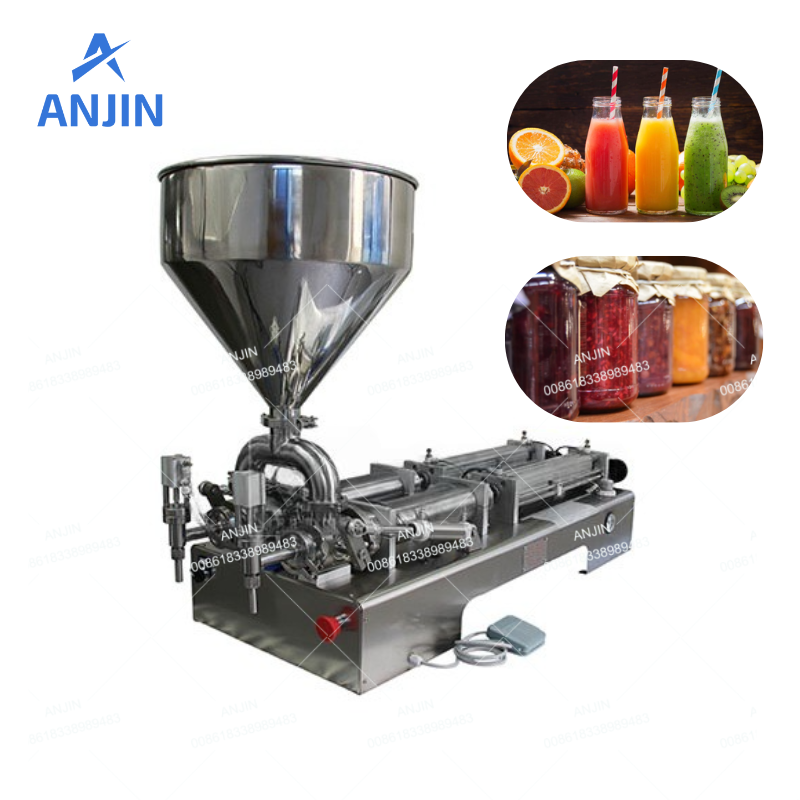

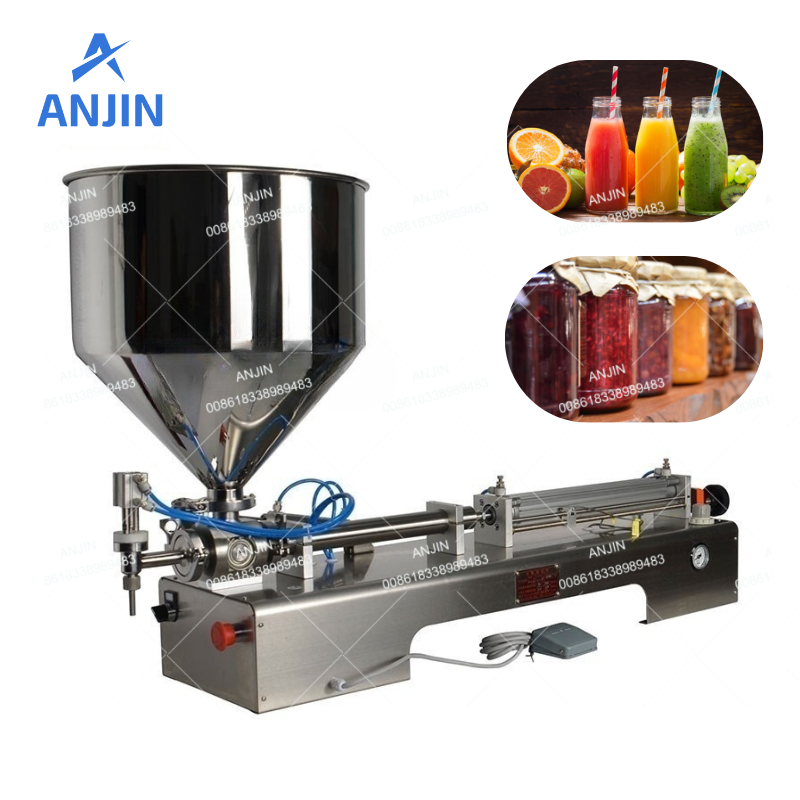

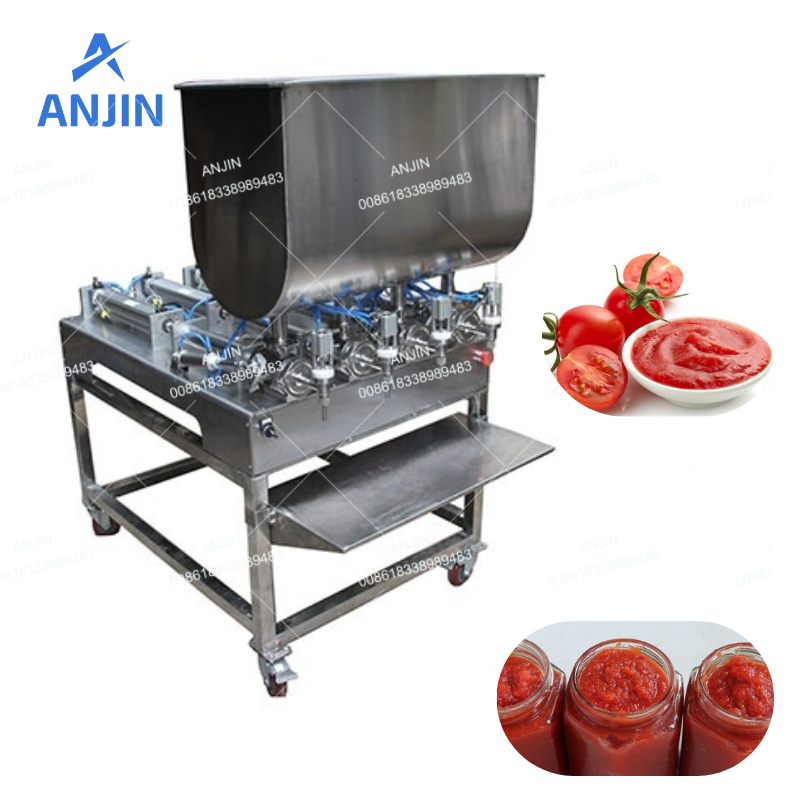

The horizontal semi-automatic paste and liquid filling machine is a semi-automatic quantitative filling machine with the purpose of pastes or liquids.

This liquid filling machine is suitable for quantitative filling of liquids, pastes and other substances in the chemical, food, daily chemical, pharmaceutical, pesticide, lubricant and other industries. Such as honey, chili sauce, ketchup, toothpaste, glass glue, etc.

Product Features
1. Japanese SMC pneumatic components, quality guaranteed;
2. Hoppers with stirring, heat preservation
3. Easy to disassemble and clean, automatic and manual, can be used with production lines;
4. Can be installed on vertical packaging machines;
5. Unique quiet working design to create a good working environment;
6. Cylinders, sleeves, hoppers are with 304/316 stainless steel materials, and pistons with  PTFE materials, which meet GMP requirements;
7. Filling volume and filling speed is adjustable with a foot switch and automatic filling function, high precision, simple structure and easy operation;
8. Use food-grade fluoro rubber sealing rings, which have good corrosion resistance, high temperature resistance and wear resistance, as well as ordinary materials.

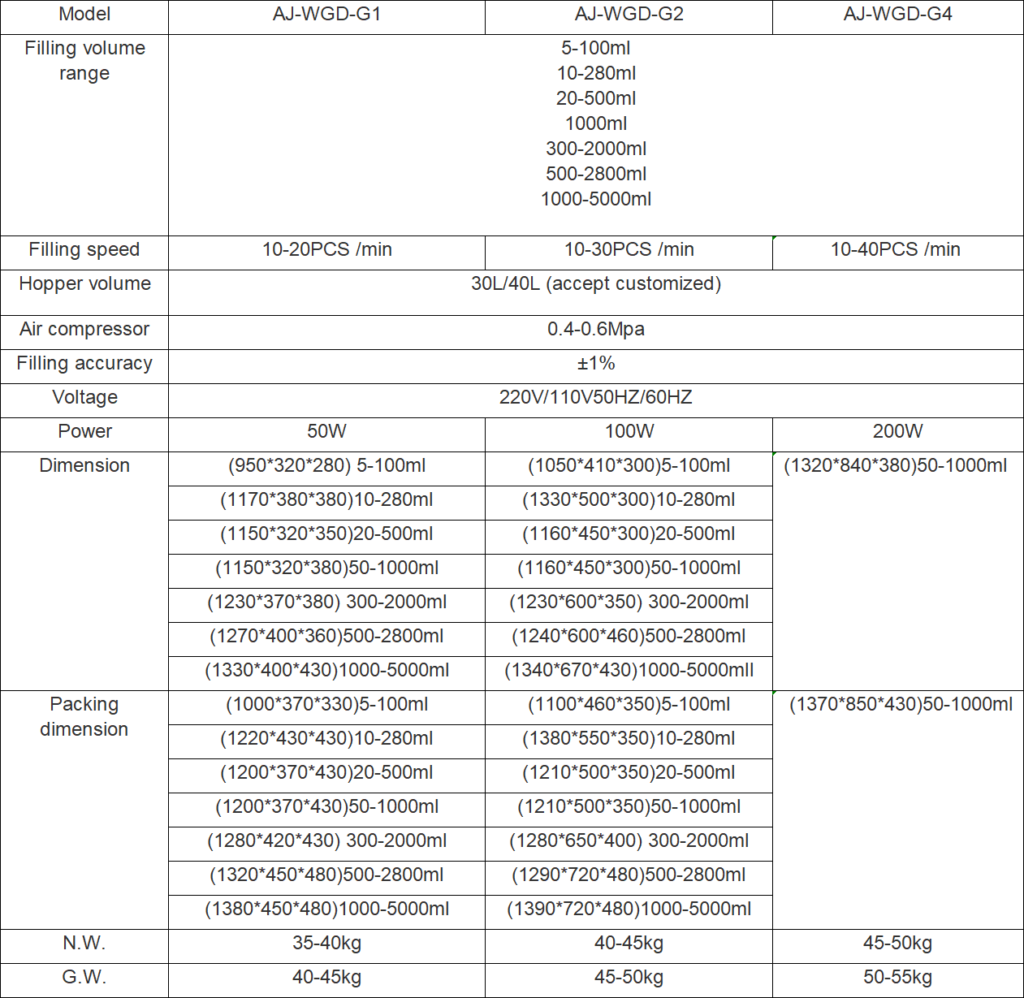

Parameter data:
