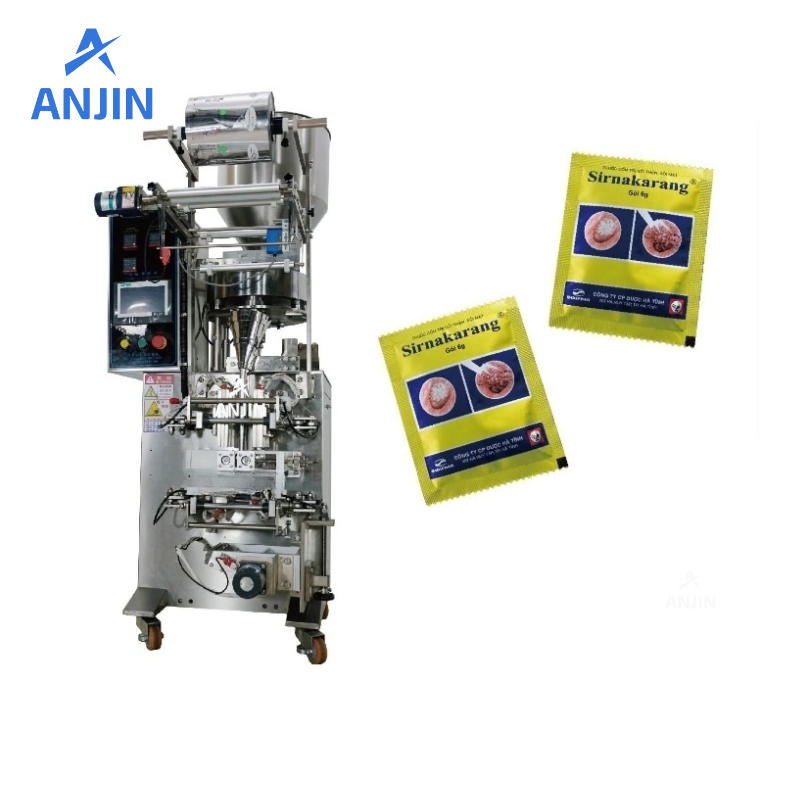

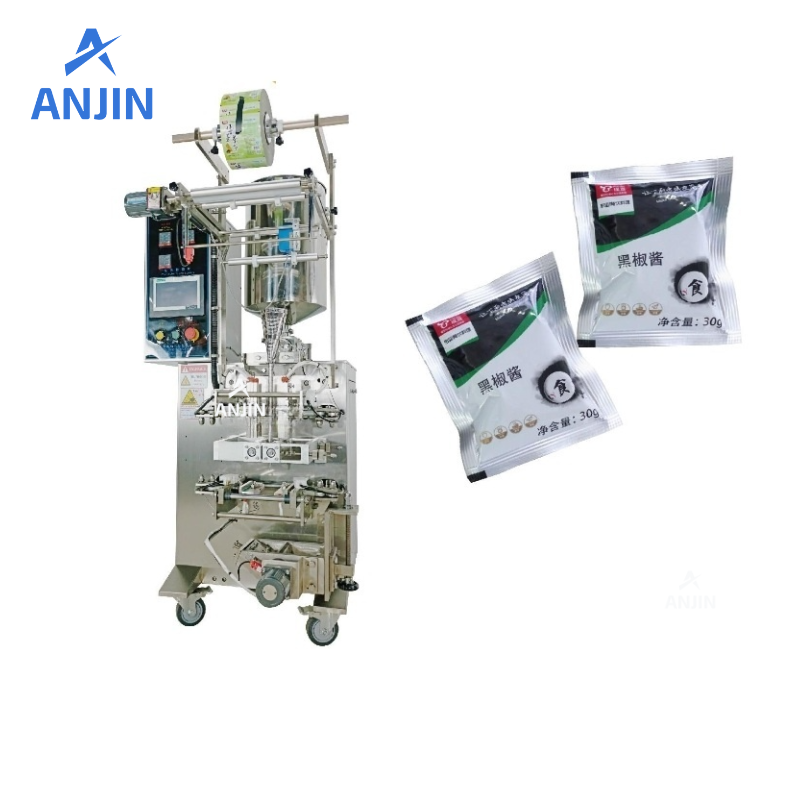

Automatic Granule packaging machine for granular items
Application:
The granule packaging machine is suitable for the metering and packaging of granular items in the food, medicine, chemical, and cosmetics industries.
Features:
1. Granule packaging machine is suitable for the metering and packaging of granular items which are in the food, medicine, chemical, and cosmetic industries.
2. All the work of bag forming, measuring, filling, sealing, cutting, date printing, and counting is automatically. At the same time, we can also customize the batch number and other functions according to customers’ demands.
3. The touch screen operation, PLC control, drive stepper motor to control the bag length, stable performance, easy to adjust, and accurate detection. Choose the intelligent temperature controller and PID control to ensure the error range of temperature is controlled within 1 degree Centigrade.
4. Packing material: BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene
Parameter Data:
| Model | AJ -61KL |
| Packing material | Polypropylene/Polyethylene, Aluminum Foil/Polyethylene, Polyester/Aluminized/Polyethylene, Nylon/Reinforced Polyethylene, Paper/Polyethylene, etc. |

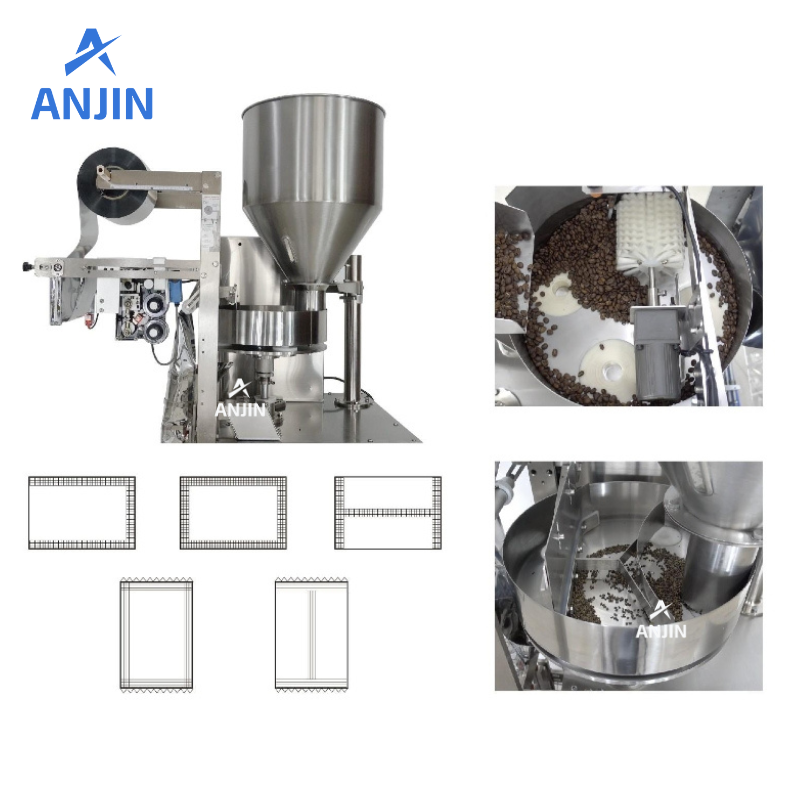

| Sealing Type | Three-side sealing/four-side sealing/back sealing |
| Measuring Scope | 1 – 100 g（3 – 100 ml） |
| Bag length | 30 – 170 mm |
| Bag width | 30 – 130 mm |
| Packing Speed | 30 – 60 bags/min |
| Dimension ( L * W * H ) | 900 * 1100 * 1590 mm |
| Weight | 400 kg |
| Total Power | 220V / 50Hz / 1.4kw |
Video for reference:
