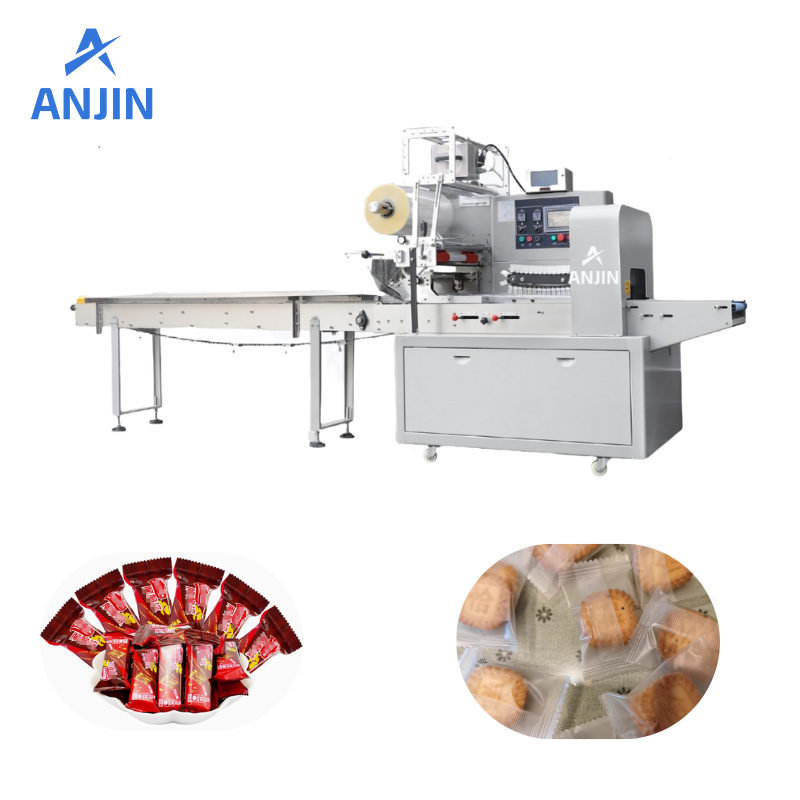

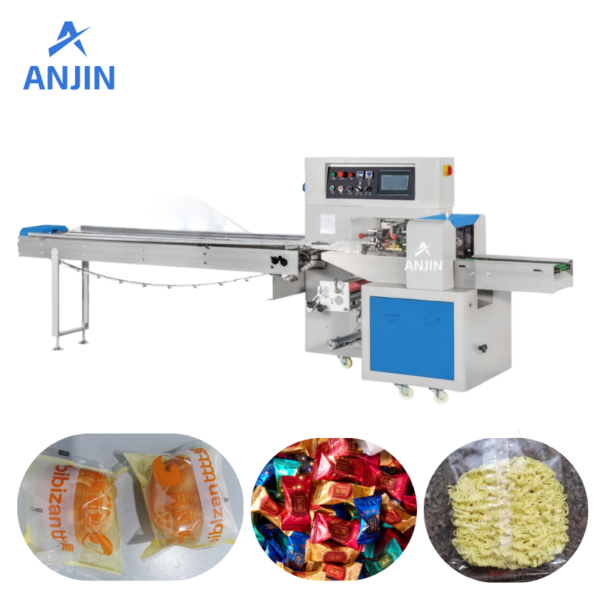

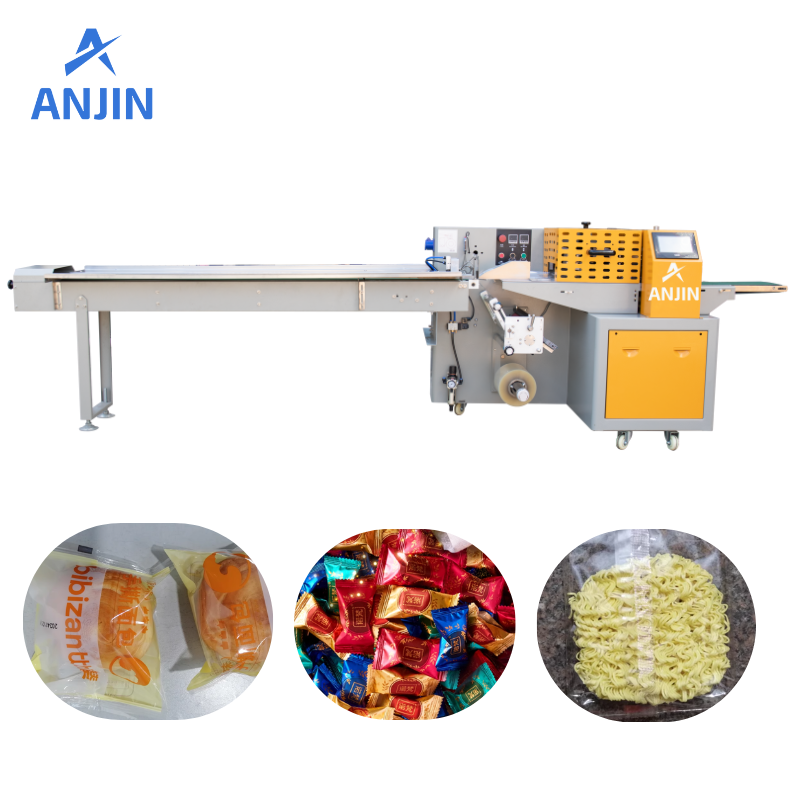

Automatic flow packing machine for bread, instant noodles, biscuits
The flow packing machine is a highly efficient automatic packaging equipment, mainly used to package products in a pillow-like shape.
It adopts a continuous film conveying method and heats sealing technology to achieve automatic packaging of products. This packaging method is not only beautiful but also has good sealing performance, which can effectively protect the product from the influence of the external environment and extend the shelf life.
Application of upper flow packaging machine:
The Upper flow packaging machine is suitable for various solid, regular -shape -shaped items packaging, and is widely used in different industries. Products that are suitable for packaging include:
Food: biscuits, bread, fast food noodles, moon cakes, candy, chocolate, etc.
Pharmaceutical: Various solid drugs.
Daily necessities: paper towels, sanitary napkins, soap, etc.
Industrial parts: hardware parts, cartons, or trays.
These products usually have regular shapes and solid characteristics, which is convenient for high-efficiency and neat packaging of paper pillow packaging machines.
Parameter Data:
| Model | AJ-220S | AJ-350S | AJ-300S |
| Film width | Max 220mm | Max 350mm | Max 280mm |
| Bag length | 50-6000mm | 80-6000mm | 60-6000mm |
| Bag width | 30-100mm | 50-160mm | 35-140mm |
| Product height | 5-35mm | 5-60mm | 5-55mm |
| Film roll diameter | Max 300mm | Max 300mm | |
| Packaging speed | 25-230bag/min | 25-230bag/min | |
| Packaging materials | OPP,OPP/CPP,KOP/CPP,ALU-FILM | OPP,OPP/CPP,KOP/CPP,ALU-FILM | |
| Power | 220V,50/60Hz,4.1 KW | 220V,50/60Hz,5.7KW | 220V,50/60Hz,4.1KW |
| Dimension | (L)3890×(W)910×(H)1390 | (L)3940×(W)1010×(H)1390 | (L)3910×(W)820×(H)1520 |
| Weight | 440Kg | 490Kg | 520Kg |
Application of Bottom flow packaging machine:
The Bottom flow packing machine is suitable for products of various shapes and properties, especially for packaging the following items:
Food series:
Soft, long, and loose items such as towels, paper towels, noodles, egg rolls, sausages, squid, popsicles, betel nuts, soft candies, biscuits, chocolates, and fresh fruits.
Vegetables, popsicles, steamed buns, egg rolls, sausages, squid, bread, instant noodles, moon cakes, preserved fruits, soft candies, etc.
Daily necessities:
Towels, paper towels, tableware, knives and forks, toys, hardware, daily chemicals, cards, etc.
Wet towels, disposable plastic knives, and forks, hotel soaps, toothbrush sets, etc.
Other categories:
Soap, wind oil essence, pocket notebooks, boxed pens, tape, medicines, etc.
Irregular items, sticky items, and solid objects.
Parameter Data:
| Model | AJ-220X | AJ-320X | AJ-400X |
| Film width | Max 220mm | Max：320mm | Max：430mm |
| Bag length | 50-6000mm | 60-6000mm | 80-6000mm |
| Bag width | 30-100mm | 35-140mm | 50-180mm |
| Product height | 5-35mm | 5-55mm | 5-60mm |
| Film roll diameter | Max 300mm | Max：300mm | Max：300mm |
| Packaging speed | 25-230bag/min | 25-230bag/min | 25-230bag/min |
| Packaging materials | OPP,OPP/CPP,KOP/CPP,ALU-FILM | OPP,OPP/CPP,KOP/CPP,ALU-FILM | OPP,OPP/CPP,KOP/CPP,ALU-FILM |
| Power | 220V,50/60Hz,3.9KW | 220V，50/60Hz，3.9KW | 220V，50/60Hz.5.95KW |
| Dimension | (L)3940×(W)880×(H)1520 | (L)3940×(W)880×(H)1520 | (L)3940×(W)940×(H)1520 |
| Weight | 440Kg | 480Kg | 580Kg |
