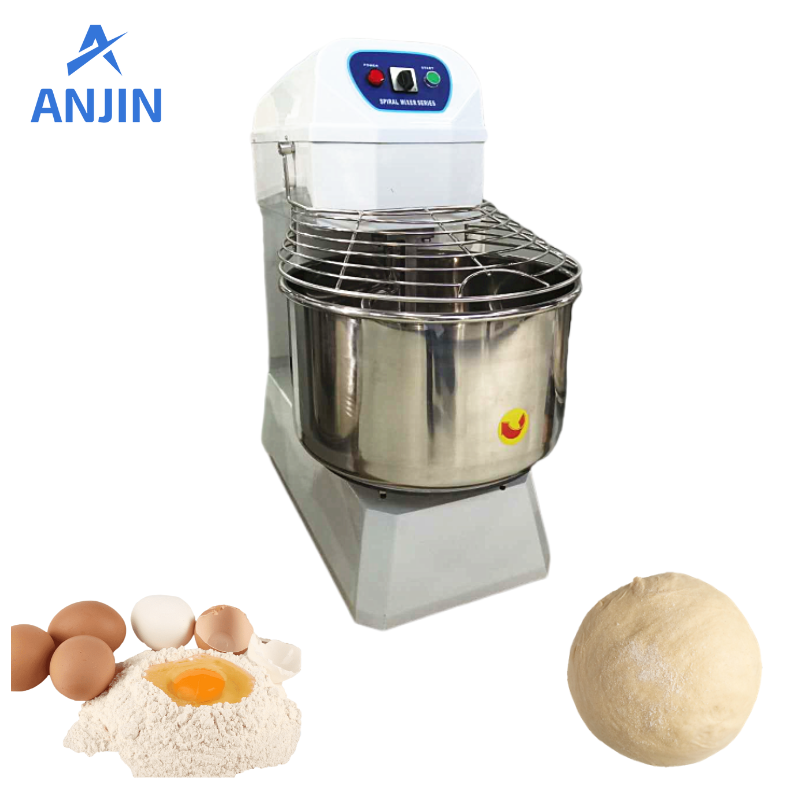

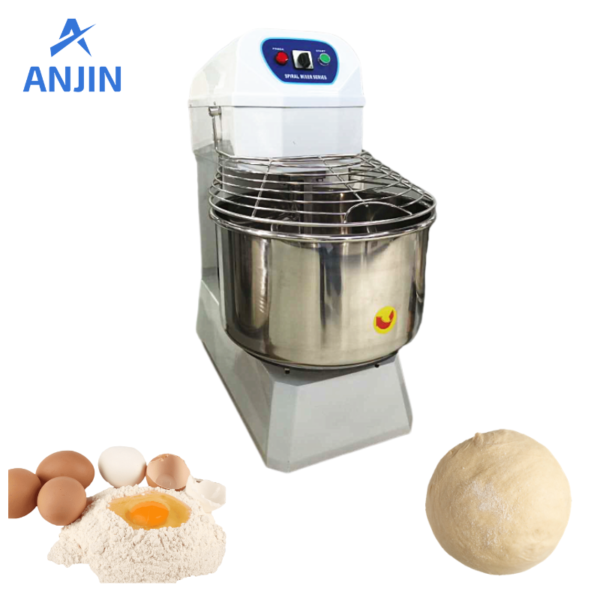

20L -80L Double Speed Double Action Dough Mixing Machine

The double-speed double-action dough mixer is an efficient kitchen equipment, especially suitable for the baking industry.

Service:

  • 24h After-sale service
  • Life Long Technical support
  • Latest marketing information update
  • Basic Recipe support



Chat on WhatsApp



Contact Form



The double-speed double-action dough mixing is an efficient kitchen equipment, especially suitable for the baking industry. We have different capacities from 20L to 300L. This page mainly introduces 20-80L.

Advantages:

  • Double-speed design:
    Double-speed means that the mixer and the barrel of the dough mixer can adjust at different speeds respectively. In this way, the speed of the mixer and the barrel can be adjusted according to the characteristics of the dough to achieve a better kneading effect.
  • Double-motion design:
    Double-motion means that the mixer and the barrel move at the same time during the dough kneading process. The mixer is responsible for fully mixing the flour and water to form the dough; while the barrel is responsible for kneading the dough to achieve the ideal gluten.

Features:

  • Efficient dough kneading:
    The double-speed double-motion dough mixer can achieve comprehensive and uniform dough kneading so that the dough has good gluten and elasticity, which is conducive to the subsequent baking process.
  • Improve work efficiency:
    This dough mixer can complete the dough kneading process in a shorter time, saving labor costs and improving work efficiency.
  • Strong adaptability:
    The double-speed double-motion dough mixer can adjust the speed of the mixer and the barrel according to the characteristics of different doughs to adapt to various dough kneading needs.
  • Low noise:
    The design of the double-speed double-motion dough mixer makes it low noise during operation and provides a more comfortable working environment.
  • Large capacity design:
    The large capacity design is suitable for high-intensity use environments and meets the needs of large-scale pastry making.
  • Safety protection measures:
    Equipped with safety measures such as overheating protection and emergency switch to ensure the safety of users

Parameter Data:

Item Name Dough Mixer Dough Mixer Dough Mixer Dough Mixer Dough Mixer Dough Mixer
Model AJ-20A AJ-30A AJ-40A AJ-50A AJ-60A AJ-80
Specified voltage ~380V/50Hz ~3N/380V/50Hz ~3N/380V/50Hz ~3N/380V/50Hz ~3N/380V/50Hz ~3N/380V/50Hz
Specified power 0.65/0.85KW/H 0.85/1.1KW/H 1.1/2.2KW/H 1.1/2.2KW/H 1.5/2.4KW/H 1.5/2.4KW/H
Mixing speed 101/202r/min 101/200r/min 101/200r/min 185r/min 101/200r/min 100/200r/min
Bowel capacity 22L 35L 40L 50L 60L 80L
Bowel speed 16r/min 15r/min 16r/min 16r/min 16r/min 16r/min
Production 8kg/h  powder 12kg/h  powder 16kg/h  powder 20kg/h  powder 25kg/h  powder 25kg/h  powder
Dimension 710*380*740mm 800*445*790mm 900*500*960mm 950*530*970mm 980*560*1060mm 1100*660*1300mm
Packing dimension 830*460*870mm 500*860*940mm 1000*560*1080MM 620*1010*1100MM 1030*610*1140mm
Drum thickness 2.0mm 2.0mm 2.0mm 2.0mm 2.5mm 3mm
Net weight 76kg 91kg 128kg 135kg 185kg 429kg
Gross weight 94㎏ 108㎏ 160㎏ 180㎏ 240㎏
