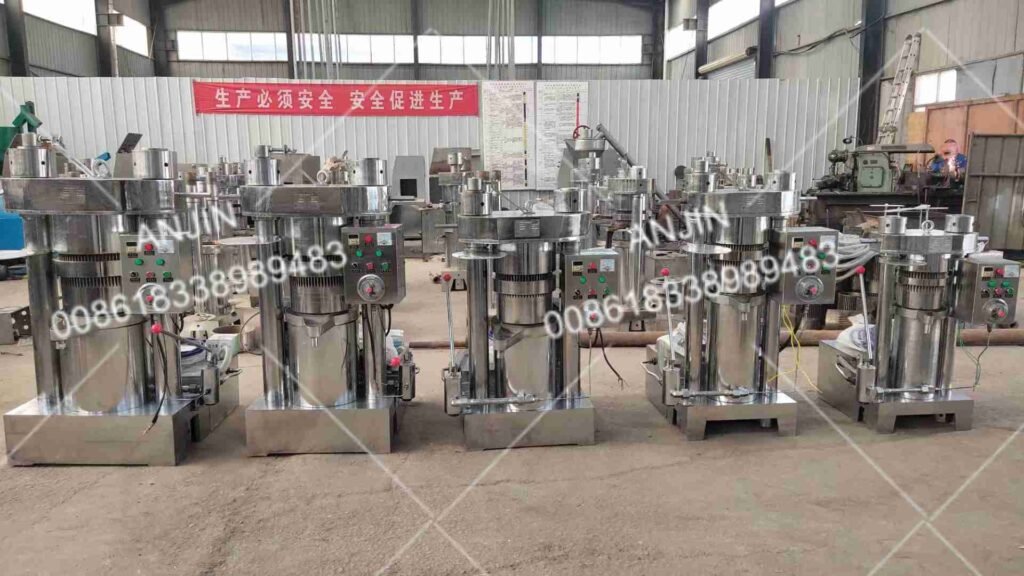

Cocoa Liquor Pressing Machine Hydraulic Oil Press Machine
The Cocoa liquor pressing machine adopts a hydraulic method, intermittently working, and suits cold or hot press.
Finished oil can processing:

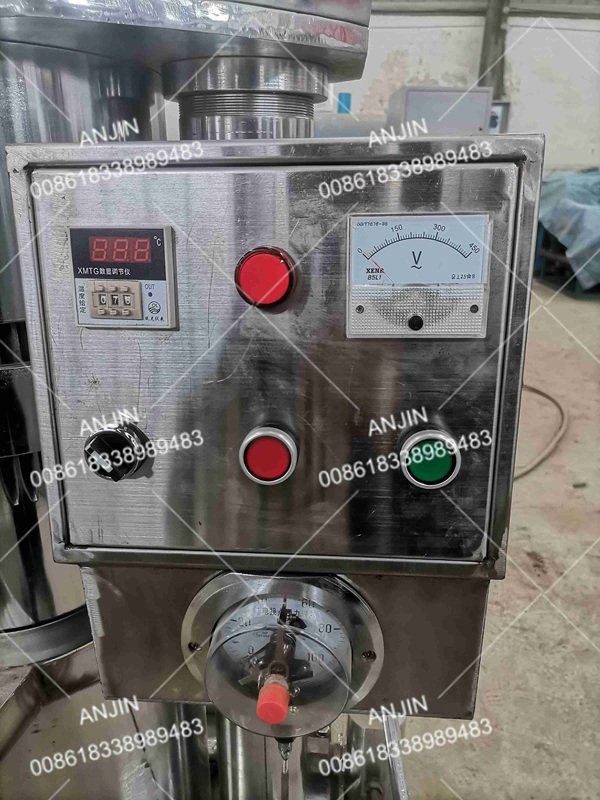

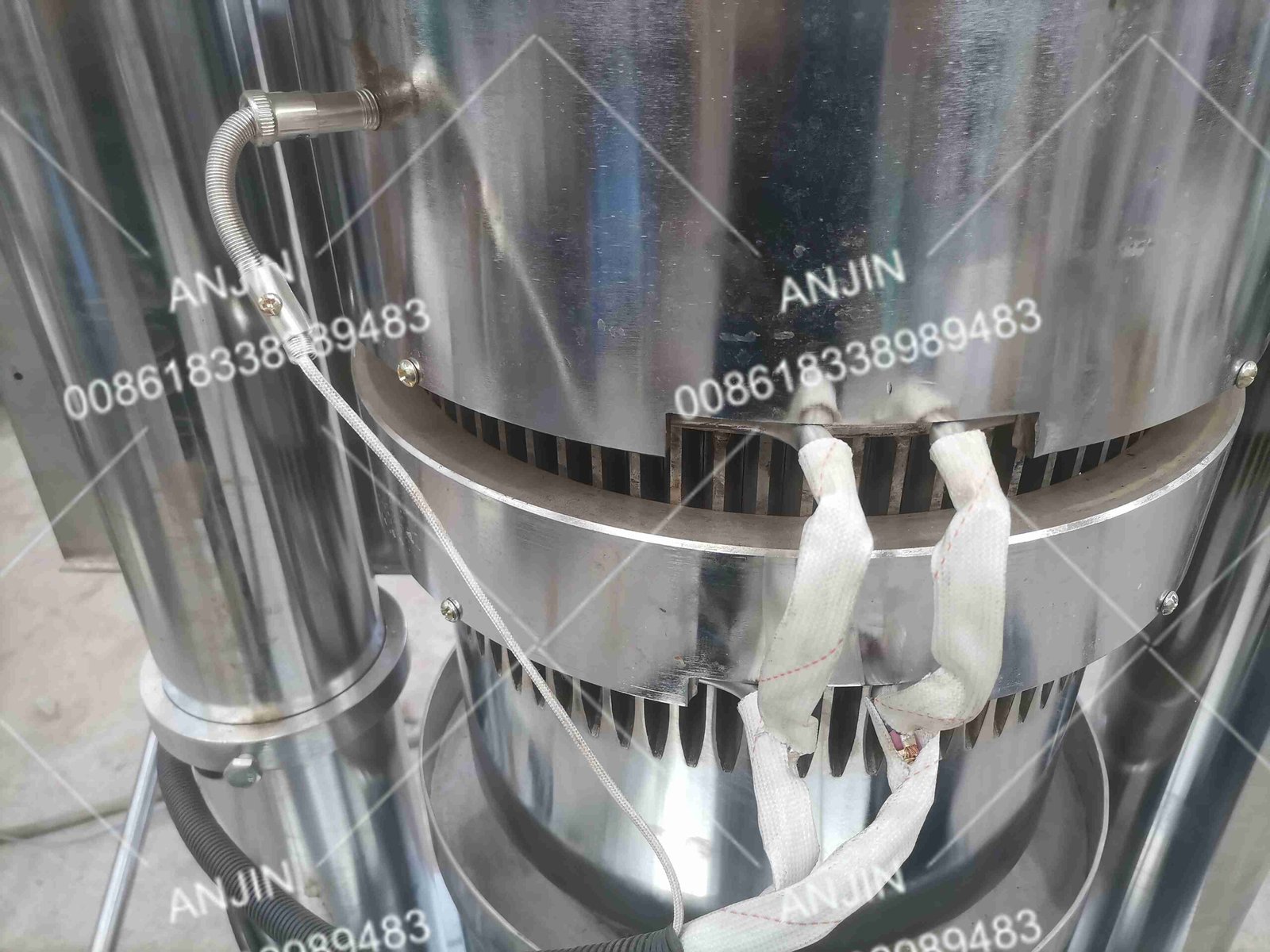

This machine is equipped with heating and an automatic temperature control function. It can used for pressing the cocoa liquor also can process sesame, walnut, coconut, macadamia nut, grape seed, avocado, and other oil crops.
Tips: We also have another screw type oil pressing machine which can process Peanut oil, rapeseed oil, soybeans oil, cotton seeds oil, sunflower seeds oil, cashew nut oil, Camellia seed oil , corn germs oil, and so on.
Feature :
- Simple operation, high oil yield, and less replacement of vulnerable parts in the mechanical oil press.
- The structure is stable and has a long operating life.
- Simple to operate and convenient for daily maintenance.
- With different capacities for optional.
Parameter data:
Model | AJ-YY180 | AJ-YY230 | AJ-YY260 | AJ-YY280 | AJ-YY320 |
Drum diameter | 185mm | 230mm | 260mm | 280mm | 320mm |
Pressure | 120T | 200T | 250T | 300T | 400T |
Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
Heating coil power | 1kw | 1.5kw | 2kw | 2.5kw | 3kw |
Loading weight/Batch | 4-5kg | 7-7.5kg | 10-11kg | 14-15kg | 19-20kg |
Pressing time/Batch | 7-8min | 7-8min | 7-8min | 7-8min | 7-8min |
Voltage/ Power | 380V50hz3p-1.1KW | 380V50hz3p-1.5kw | 380V50hz3p-1.5kw | 380V50hz3p-2.2kw | 380V50hz3p-4kw |
Dimension (mm) | 800*650*1100mm | 900*750*1400 | 1000*900*1450 | 1100*1100*1500 | 1150*1100*1700 |
Weight (kg) | 530 | 880 | 1050 | 1500 | 1800 |
Related machine:
Cocoa bean roasting machine , cocoa bean peeling machine, cocoa butter grinding machine, cocoa cake crushing machine,cocoa powder grinding machine

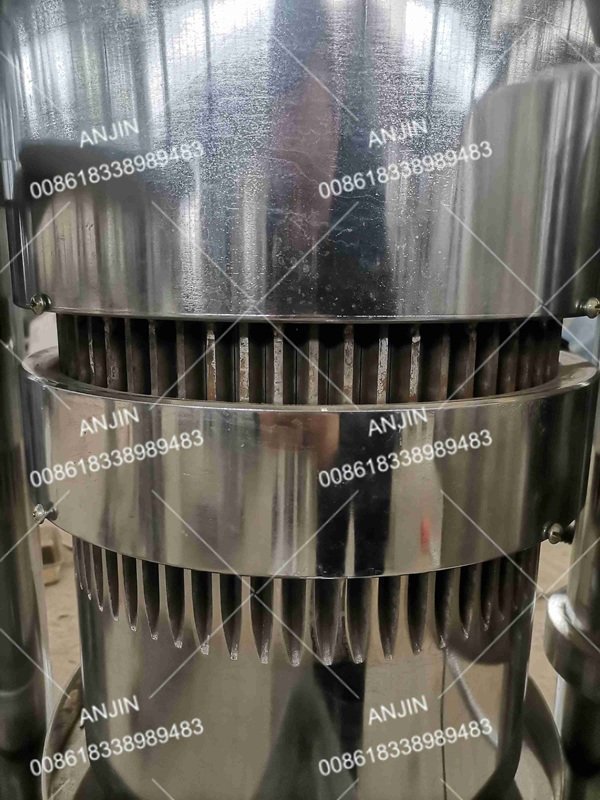

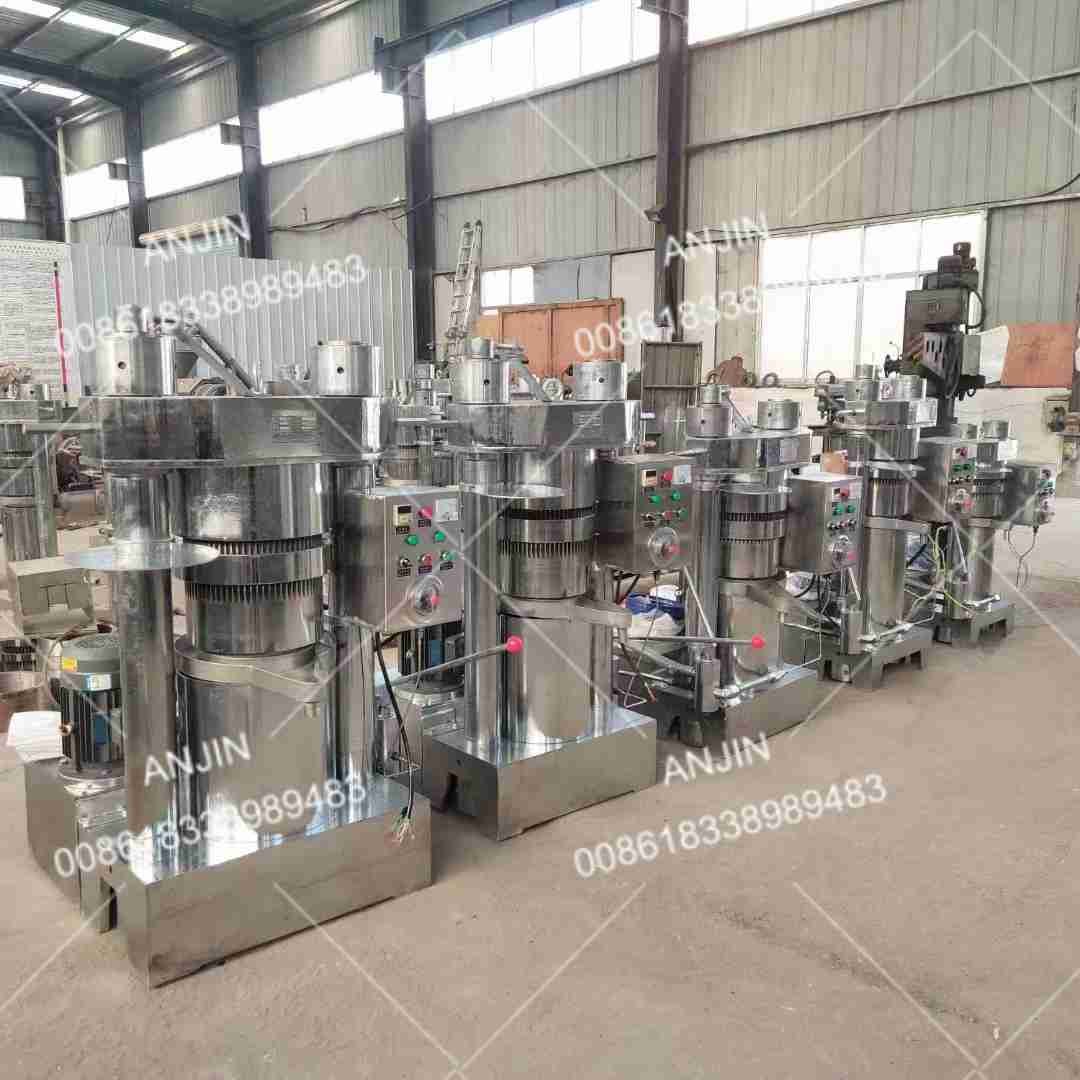

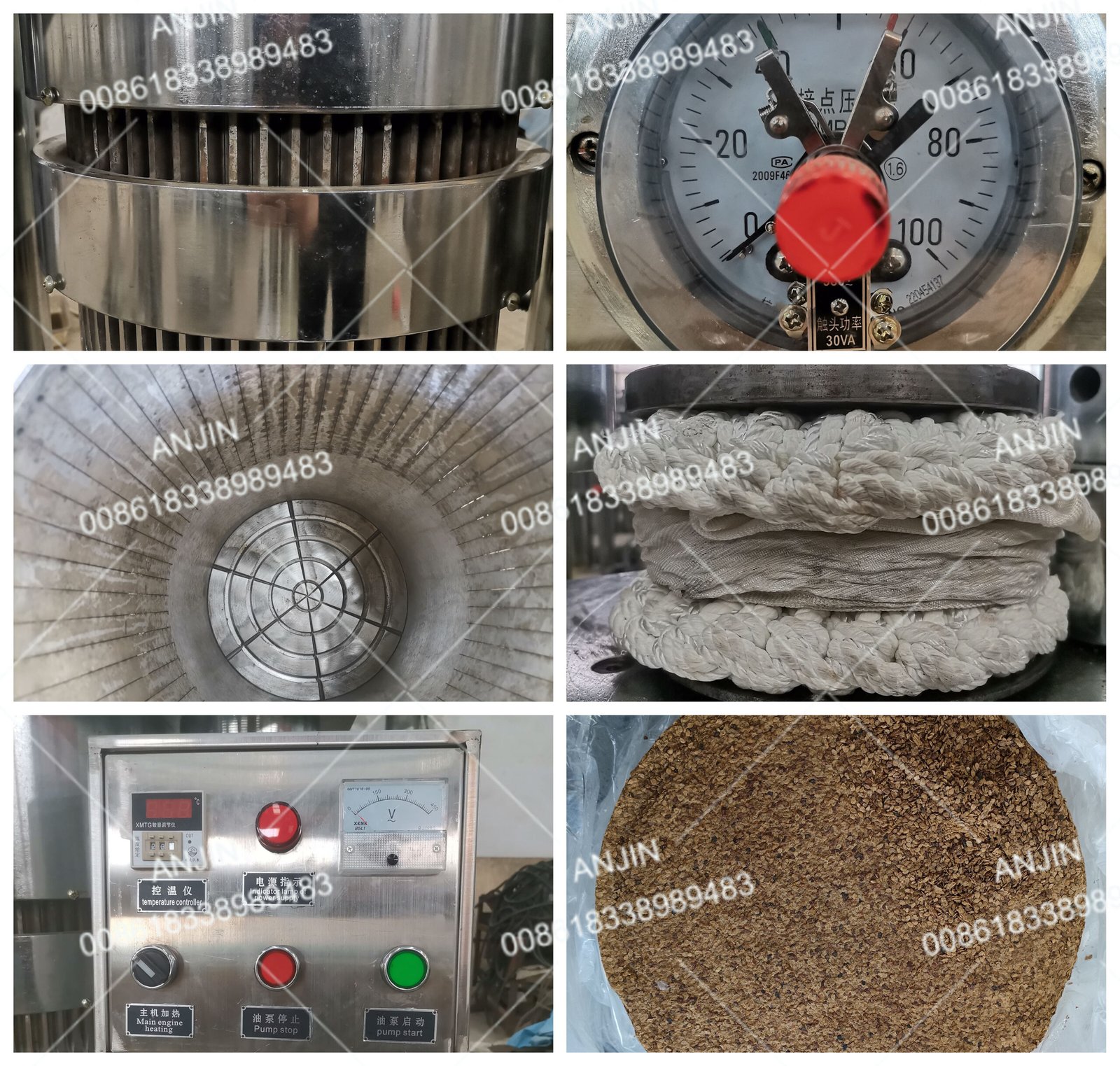

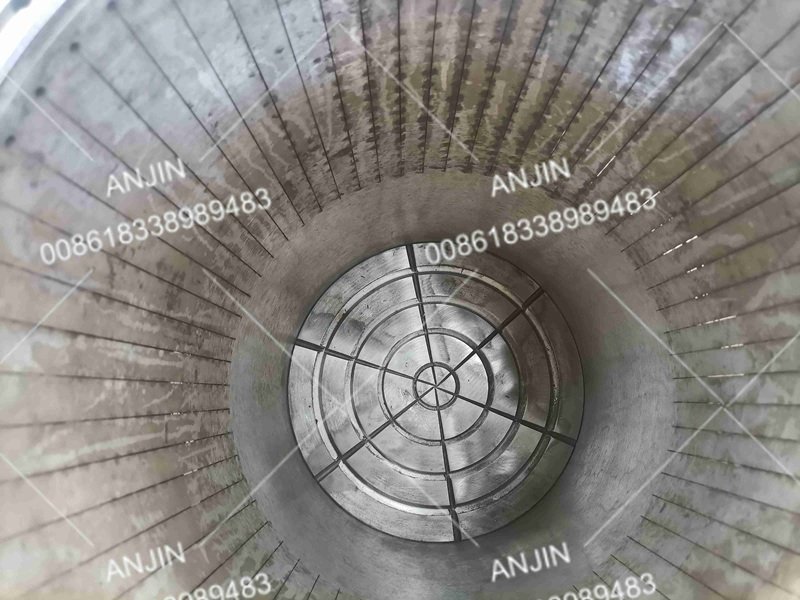

More pictures :
