Cocoa Butter Grinding Machine Cacao Paste Grinder Cocoa Mass

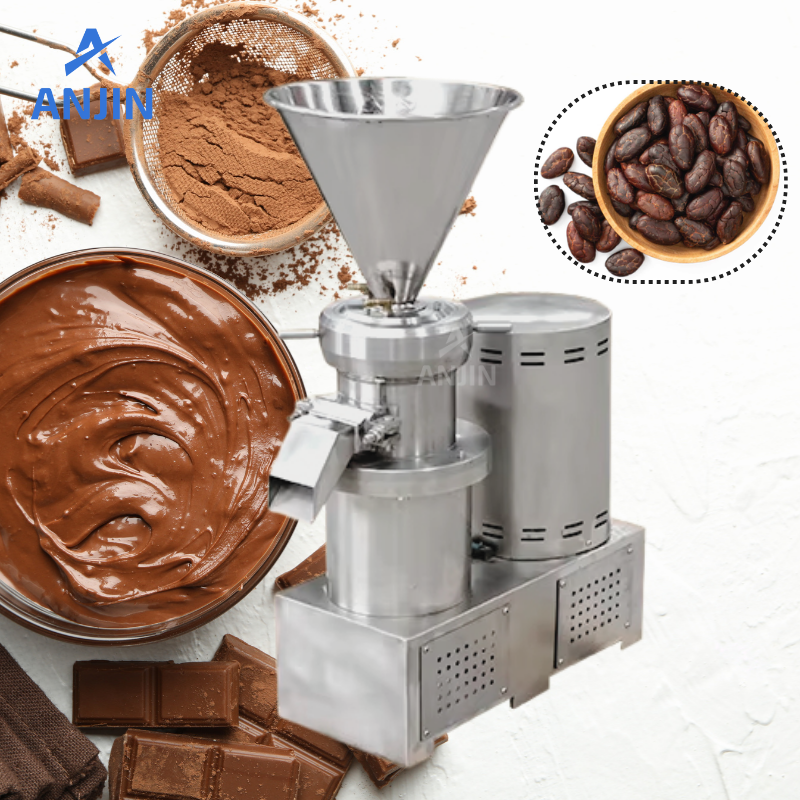

Automatic Cocoa Butter Grinding Machine Cacao Paste Grinder Cocoa Mass Making Machine

This Cocoa Butter Grinding Machine can grind kinds of nuts like cashew nuts, peanuts, pistachios, sesame, Cocoa beans, etc. This butter grinding machine is also called a colloid mill.

Features:

Stainless steels
High productivity
Stable performance
Safe and hygienic
Small space occupied
Small investment

The finished product :

Working principle :

Operation of the Colloid Mill: The colloid mill uses an electric motor with a belt to rotate the rotating teeth (or rotor) and the matching fixed teeth (or stator) at high speeds.
Material Pressurization and Impact Force: The material pressurizes due to its own weight or external pressure, often from a pump, and this pressurization creates a downward spiral impact force on the material.
Physical Effects on Material Processing: This subheading does not have a direct corresponding sentence in the provided text, as the text does not elaborate on the specific physical effects during material processing.
High Refining Effect and Material Adaptability: It often precedes homogenizers in many processes or is used in high-viscosity situations. Colloidal grinding is the method of choice for refinement when the material contains numerous solid substances.
Application in High-Viscosity and Solid Substance Refinement: It often uses colloidal grinding for refinement when dealing with many solid substances.

Parameter Data:

Model	AJ-80	AJ-110	AJ-130	AJ-180	AJ-240	AJ-300
Fineness (mesh)	50-100	100-200	100-200	100-200	100-200	60-200
Capacity (kg/h)	100-500	300-1200	500-2000	800-6000	4000-15000	6000-20000
Power (kw)	4	7.5	11/15	18.5	37/45	75/90
Voltage	380v/50hz 3ph \| 220v /50hz 1ph
Weight (kg)	150	175	285	330	920	1600
Dimension(mm)	600410930	7004301000	9904401000	9904901000	13205001280	14406301420
