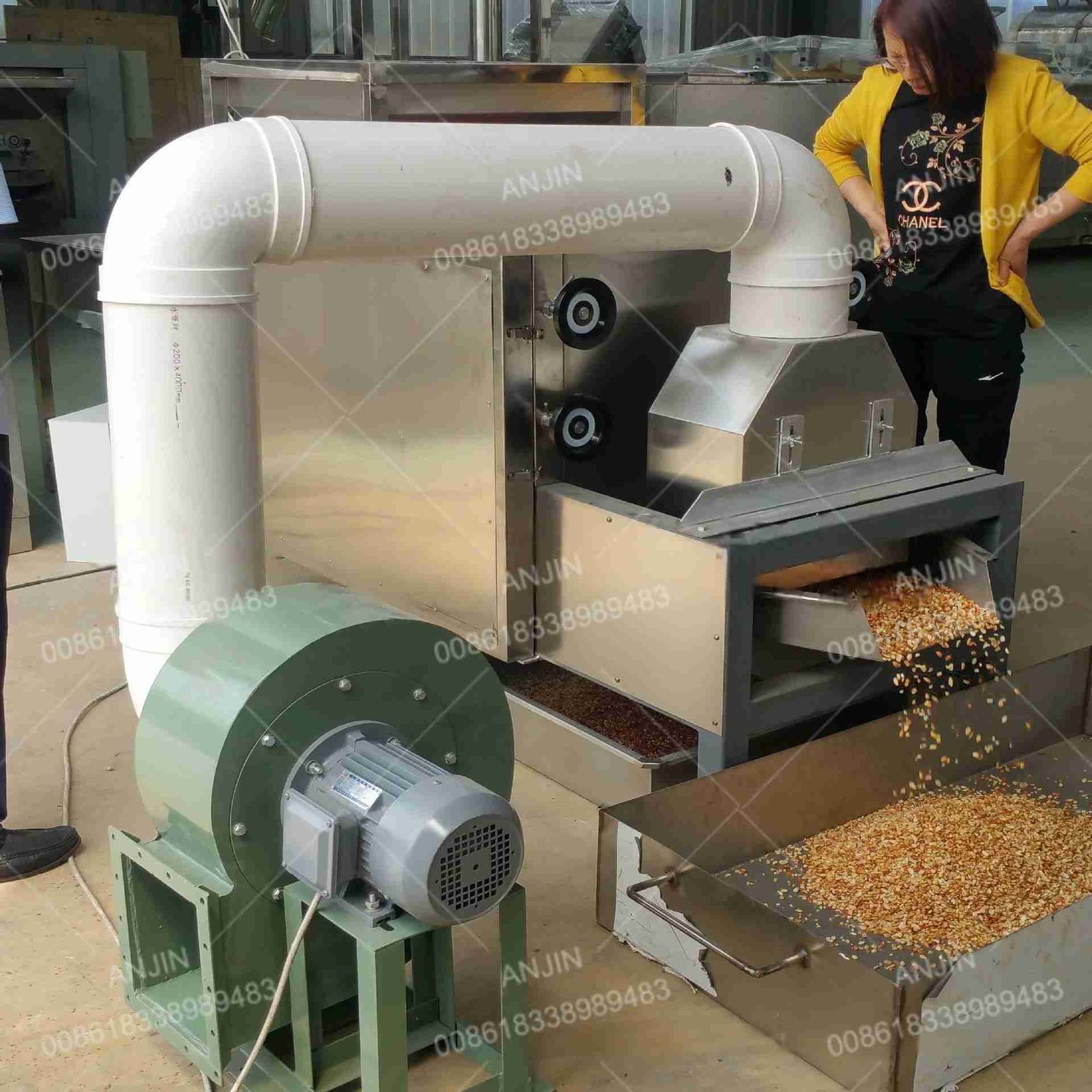

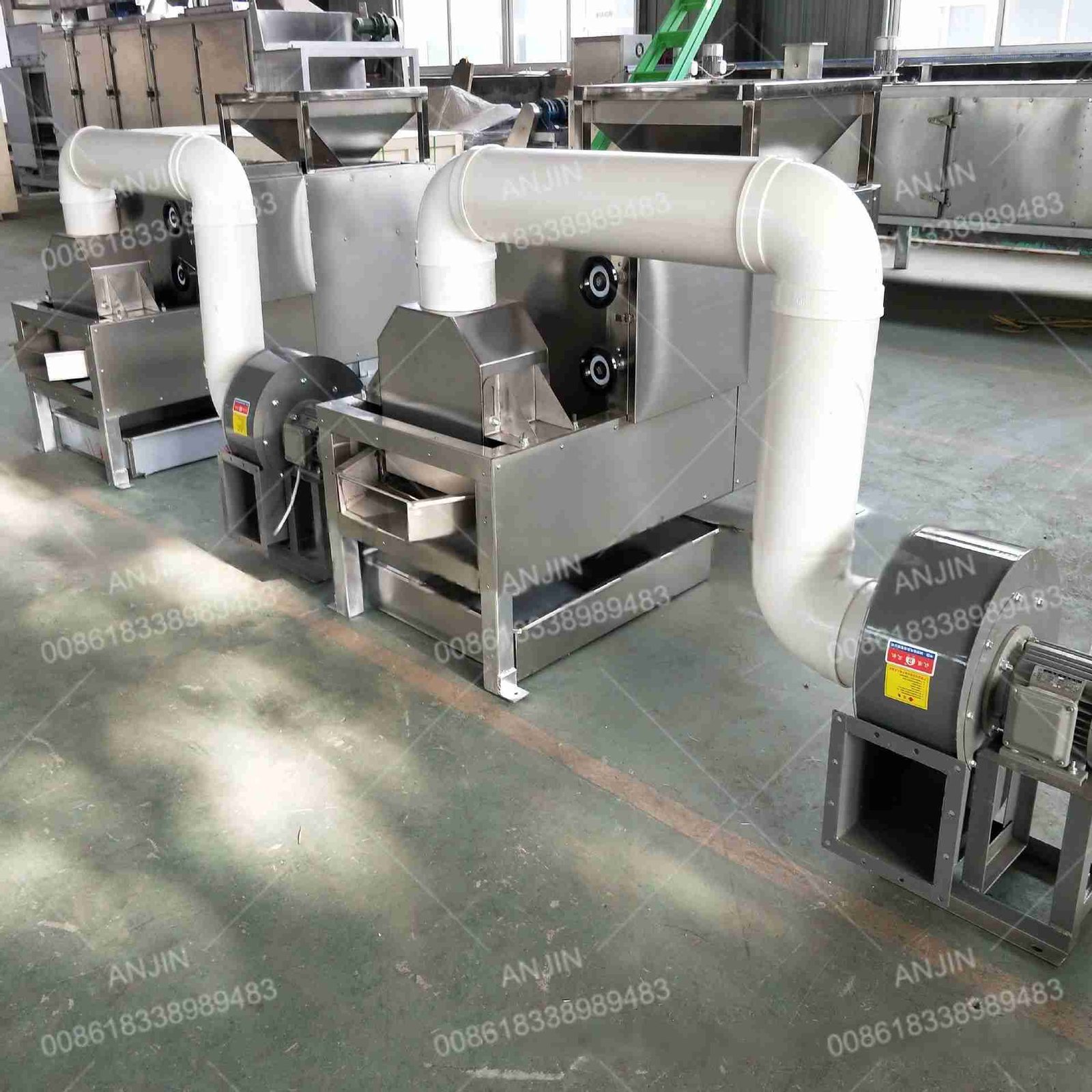

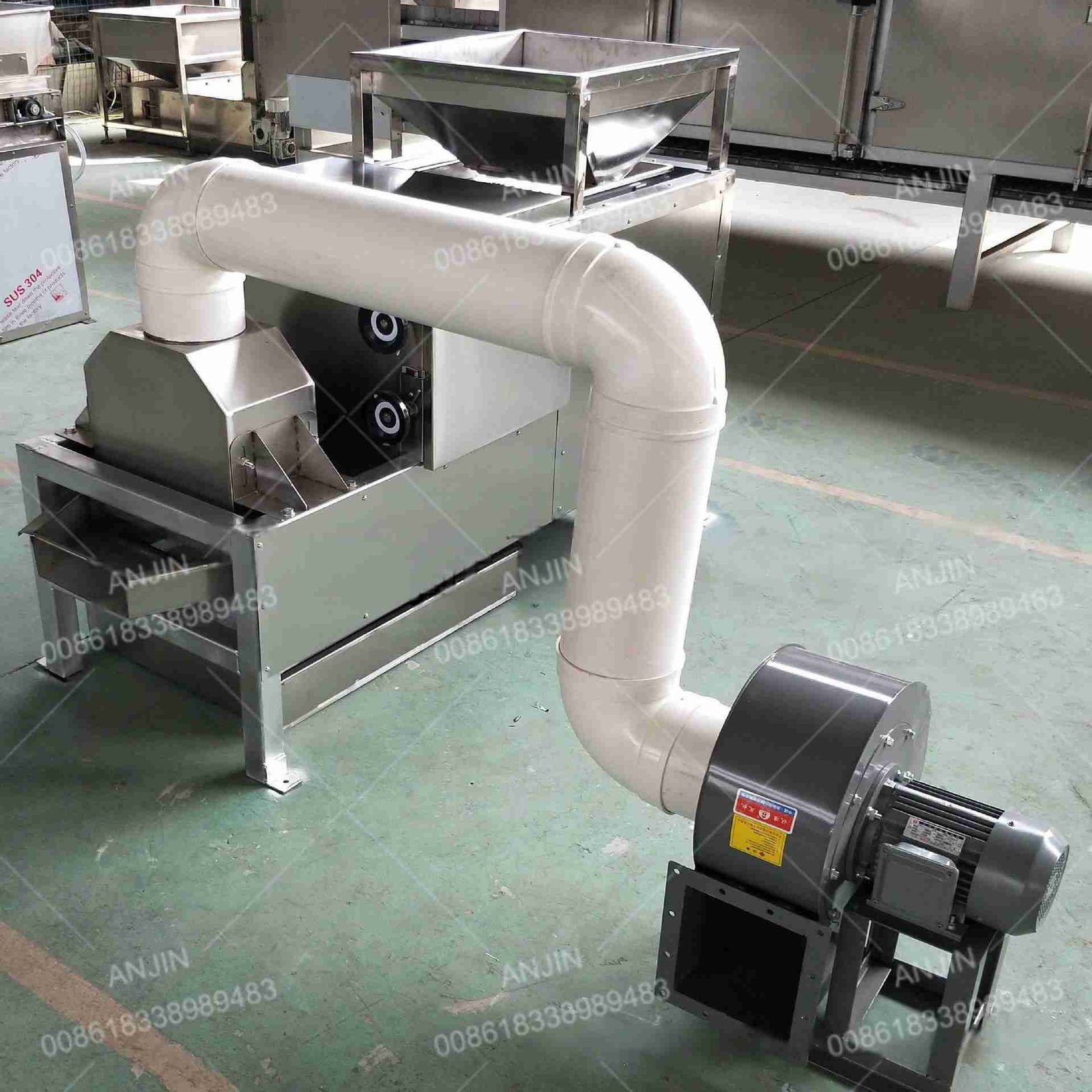

Automatic Cocoa Bean Peeling Machine Cacao Bean Skin Peeler

Product characteristics

This Cacao bean skin peeler machine absorbs the advantages of similar products, with reasonable structure, high efficiency, energy saving, easy of use, and so on. The production of half-grain uniform, beautiful, less material consumption, is the ideal choice for the food processing industry.

Usage and working principle

This half grain machine is mainly used for half grain processing of peanut rice and other nuts.

Raw materials by only the rubber roller extrusion and differential rubbing half. The vibration conveying process through the low-pressure fan to separate from the detached red skin, and sieve out the germ, half of the grain from the mouth of the discharging material.

Structure

It mainly consists of hopper, half-splitting mechanism, half-grain separating mechanism of red skin and germ, and so on.

Installation

Place the chopper in a stable position, keep it horizontal, align the discharge port with the hopper, connect the power supply, switch on the machine to see if it is rotating in the right direction and whether there is any other abnormality, and then it can be used after adjustment.

Parameter Data:

Model: AJ-BL500

Power:1.5KW+ Fan power：1.5KW

Capacity:500-1000kg/h

Dimension：1900x800x1350mm

Voltage:380V 50HZ 3ph
