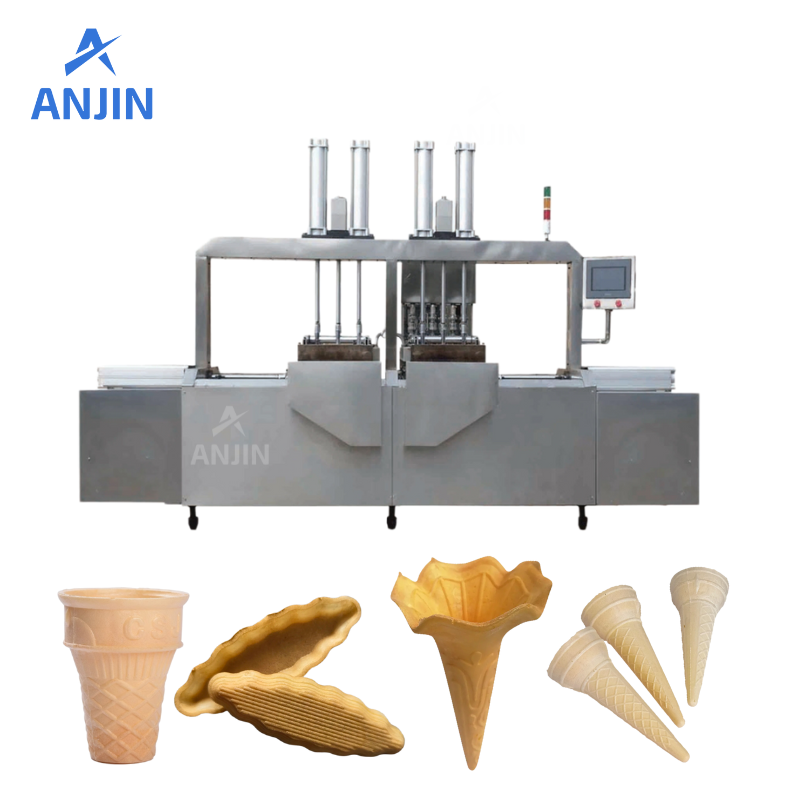

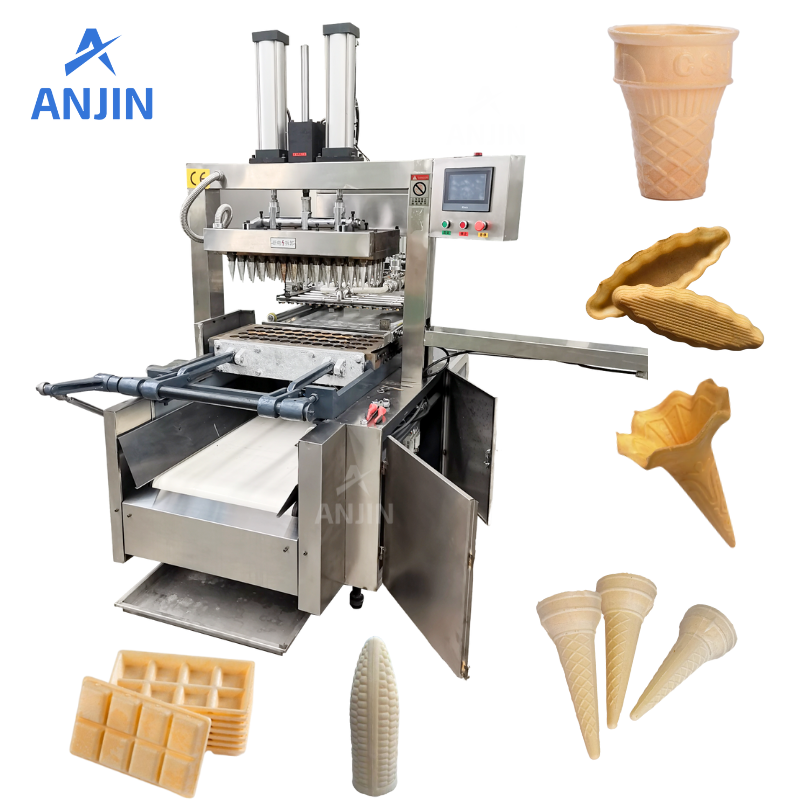

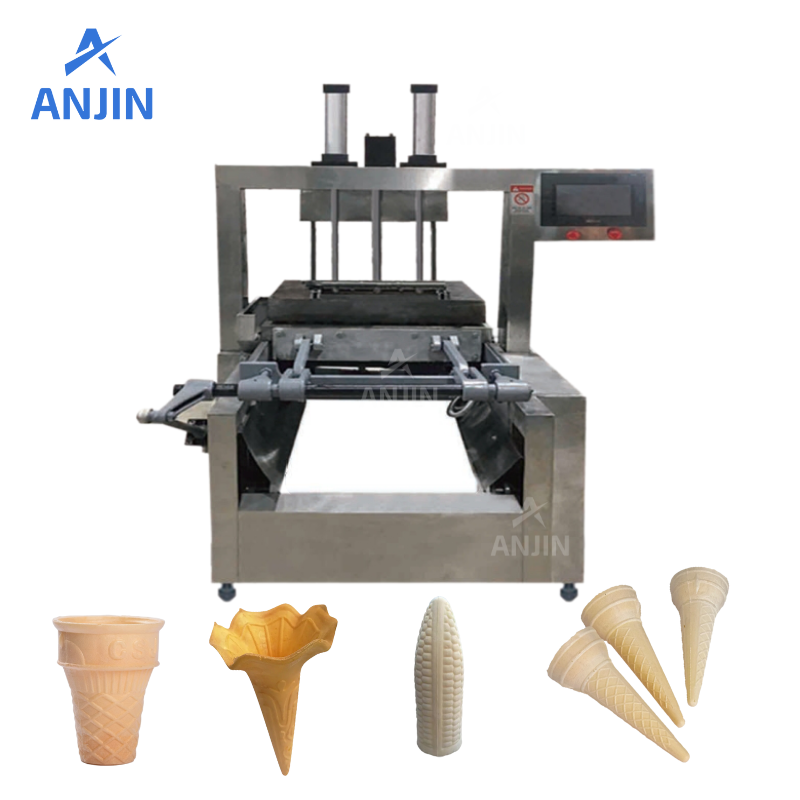

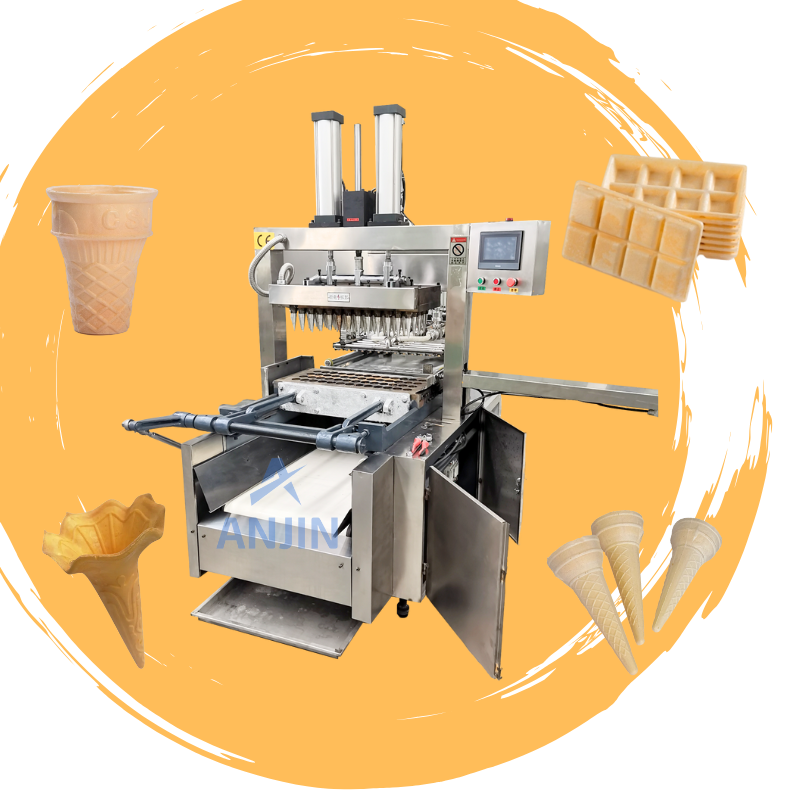

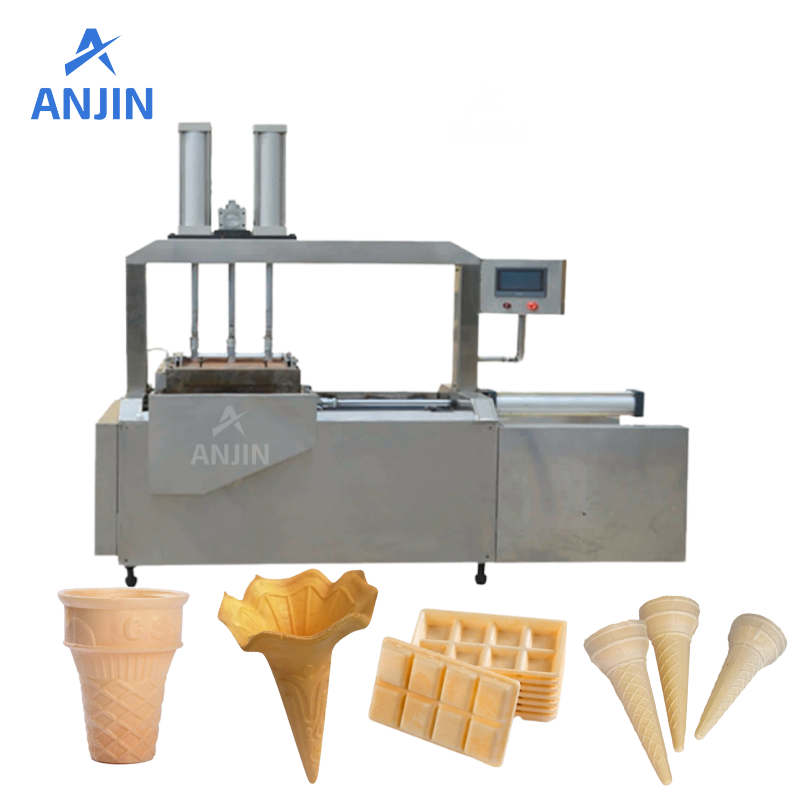

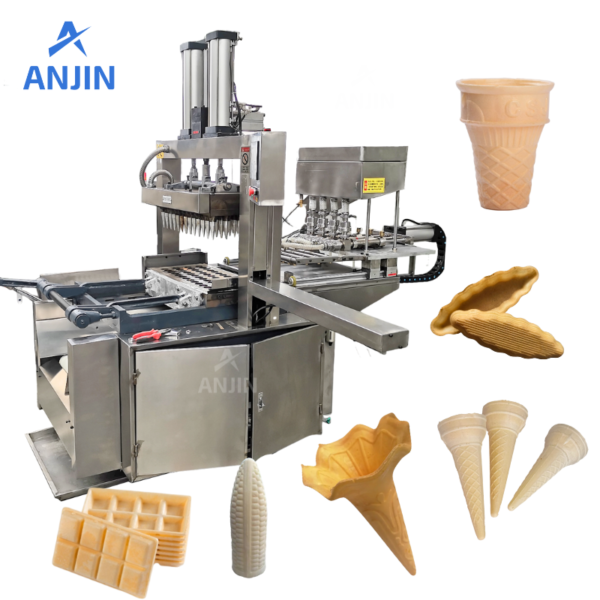

Wafer Cup Forming Machine Wafer Cone Making Machine

Introduction of Wafer Cup Forming Machine

This Automatic wafer cup forming machine can automatically perform functions such as batter injection, baking, and discharge. Molds can be changed to different shapes

Advantages

1. The wafer cup forming machine supports customizing the cone moulds

2. Made of stainless steel, high-quality food-grade materials ensure healthy food production.

3 . Easy operation, high efficiency, low noise, high capacity with low power, and easy to clean.

4 . Different quantities of molds to make wafer cups, wafer cones, and Monaka shells of different yields.

5 . Economical price, specialized in ice cream cone production.

Automatic discharge：

Press the mold open button, the upper mold rises and separates from the lower mold. After baking, there will be residue on the mold, and the automatic scraper will scrape the residue out.

After that, the lower mold can automatically discharge following a sequence, and the cone will be automatically unloaded on the conveyor belt below.

Cooling conveyor:

The conveyor belt moves slowly to achieve a cooling effect when transporting the cone.

Parameter Data:

Model	AJ-40A	AJ-60A	AJ-120A
Moulds	40pcs	60pcs	120pcs
Max Capacity	1200-2400pcs/h	2500-3000pcs/h	5000-6000pcs/h
Power	15KW	23KW	46KW
Size(mm)	200016002100	270024002400	540024002400
Weight(kg)	800	1000	2000
