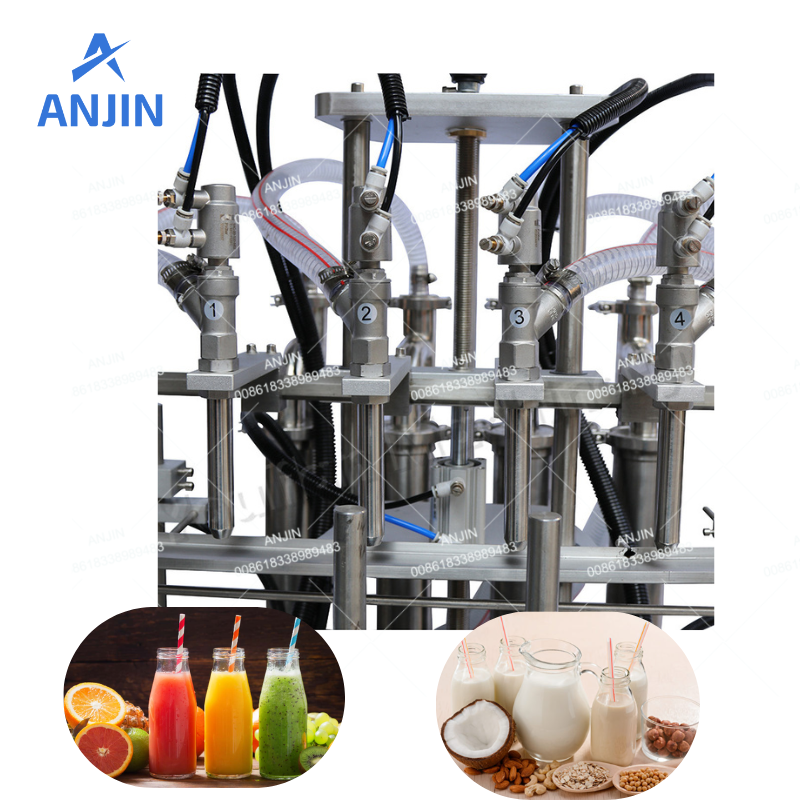

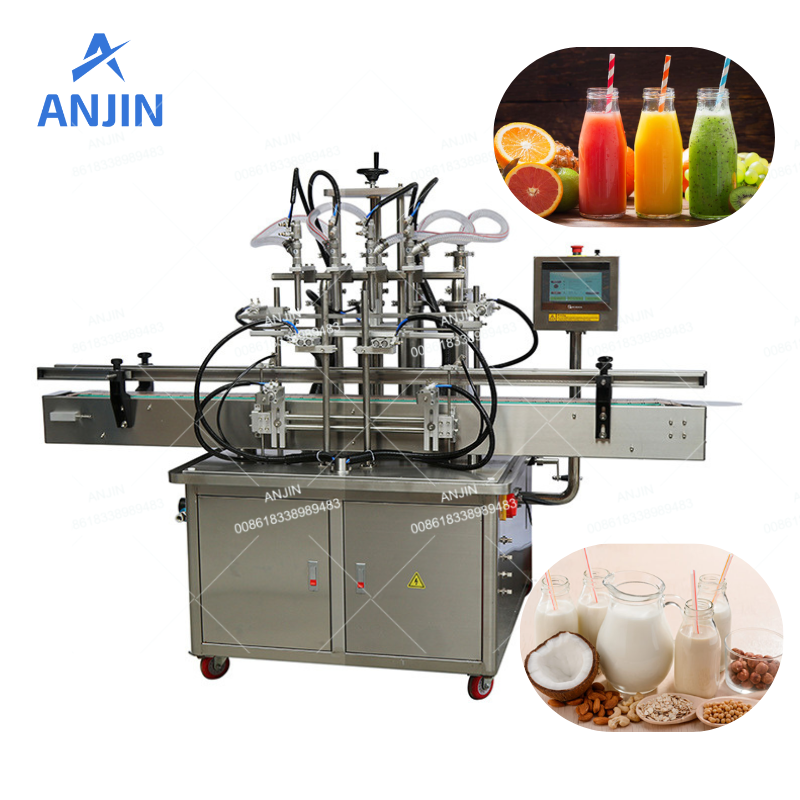

Automatic Liquid filling machine | Essential oil filling machine with 4 heads
This Automatic liquid filling machine is suitable for filling Alcohol, laundry detergent, glass water, soft drinks, essential oil filling machine
Product Features:
1. The machine body is made of stainless steel, which is durable;
2. High-quality pneumatic components, stable performance;
3. The filling head has a good anti-drip design.
4. Touch screen display and operation, simple and convenient debugging;
5. Piston quantitative principle, PLC control, good filling accuracy;
6. The parts in contact with the material are 304/316 stainless steel, which meets GMP standards;
7. No need to replace parts, easy debugging can be applied to bottles of different shapes and sizes;
Parameter data:
| Model | AJ-SA2T | AJ-SA4T | AJ-SA6T | AJ-SA8T |
| Nozzle No. | 2 | 4 | 6 | 8 |
| Filling volume range | 5-100ml 10-280ml 20-500ml 50-1000ml 300-2000ml 500-2800ml 1000-5000ml | |||
| Filling speed | 0-20 PCS/min | 0-40 PCS/min | 0-60 PCS/min | 0-80 PCS/min |
| Air compressor | 0.4-0.6Mpa | |||
| Filling accuracy | ±1% | |||
| Power | 1kw | 1kw | 1.5kw | 1.5kw |
| Voltage | 220V/110V 50HZ/60HZ | |||
| Dimension (mm) |
（1250*950*1600）5-100ml,10-280ml,20-500ml （1750*950*1500) 50-1000ml (2050*920*1500）300-2000ml,500-2800ml,1000-5000ml |
（1430*1130*1670）5-100ml , 10-280ml （2100*1150*2130）20-500ml （2050*1130*1580）50-1000ml （2160*1460*1490） 300-2000ml , 500-2800ml （1900*1350*1890）1000-5000ml |
（1700*1120*1790）5-100ml （1700*1130*1890）10-280ml （2050*1150*1950）20-500ml ,50-1000ml （2000*1160*1930）300-2000ml ,500-2800ml ,1000-5000ml | / |
| N.W. | 200Kg | 200Kg | 500Kg | 500Kg |
| G.W. | 250Kg | 250Kg | 550Kg | 550Kg |
